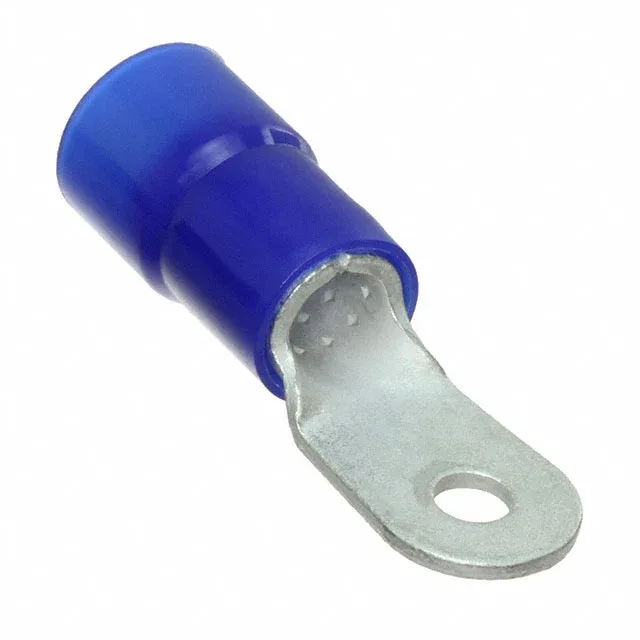

Molex 190670067
MPN190670067
Active
CONN RING CIRC 6AWG #8 CRIMP
$1.23Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesNylaKrimp
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | NylaKrimp |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 6 AWG |
| Color | Blue |
| Contact material | Copper Alloy |
| Width - outer edges | 0.480\" (12.19mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Bulk |
| Features | Brazed Seam |
| Thickness | 0.050\" (1.27mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 8 Stud |
| Contact finish | Electro-Tin |
| Length - overall | 1.610\" (40.89mm) |
| Insulation diameter | 0.428\" (10.87mm) |
