Molex 2132272010 — Female Socket Headers

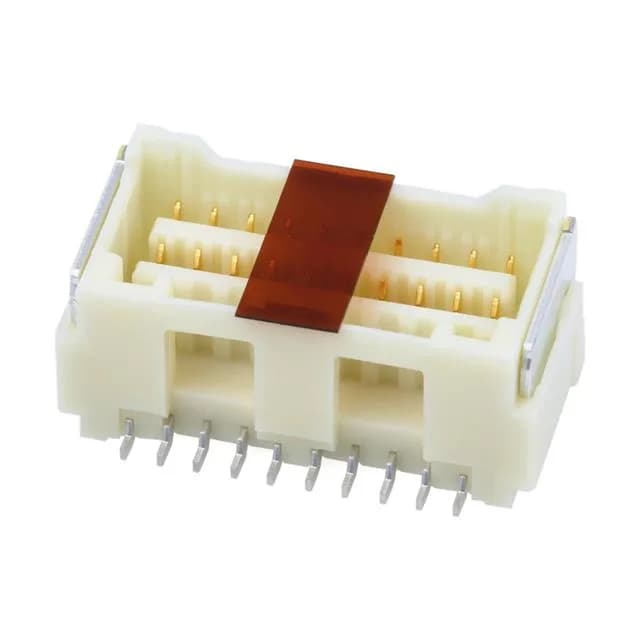

Molex 2132272010 CLIK-Mate 1.50 mm Pitch 20-Position

MPN2132272010
Active

Molex CLIK-Mate 213227, 2132272010, Board to Cable/Wire receptacle, 20 positions, dual-row, 1.50 mm pitch, gold-plated mating contacts, latch holder, surface-mount solder termination, UL94 V-0 natural nylon housing

$3.7900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCLIK-Mate 213227
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

2132272010 key specifications
ParameterValue
SeriesCLIK-Mate 213227
TypeForked
MountingSurface Mount
Connector typeReceptacle
Fastening typeLatch Holder
Voltage rating100VAC/DC
Current ratingVaries by Wire Gauge
Operating temperature-40°C ~ 105°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.346\" (8.80mm)
Insulation materialPolyamide (PA), Nylon

All specifications

2132272010 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesPick and Place, Solder Retention
TerminationSolder
Rows2
Pitch0.059\" (1.50mm)
Positions20
Contact finish - postTin
Contact finish - matingGold
Contact finish thickness - post39.4µin (1.00µm)
Contact finish thickness - mating3.94µin (0.100µm)

Product details

Molex 2132272010 is a 20-position, dual-row receptacle from the CLIK-Mate 213227 series, designed for board-to-cable/wire interconnects. The 1.50 mm pitch sets the board footprint and per-contact current ceiling; at 1.50 mm spacing, the current is limited more by the wire gauge than the contact itself — the rating varies by wire gauge.

Latch holder and SMT solder retention

The SMT termination includes solder retention features, and the part is packaged in Tape & Reel with pick-and-place capability for automated assembly.

Frequently asked questions

Where can I buy Molex 2132272010 and how do I get a price?

2132272010 is sourced through independent distribution. No stock-holding claim is made; each order is sourced per your quantity.

What is the pitch of Molex 2132272010?

The mating pitch is 1.50 mm (0.059 inches). This is the centre-to-centre spacing between adjacent contacts, which determines the board footprint and routing density.

Is 2132272010 RoHS compliant?

Yes, it is ROHS3 compliant.

What is the current rating of 2132272010?

The current rating varies by wire gauge — the datasheet specifies that the rating depends on the wire size used in the mating crimp terminal.
