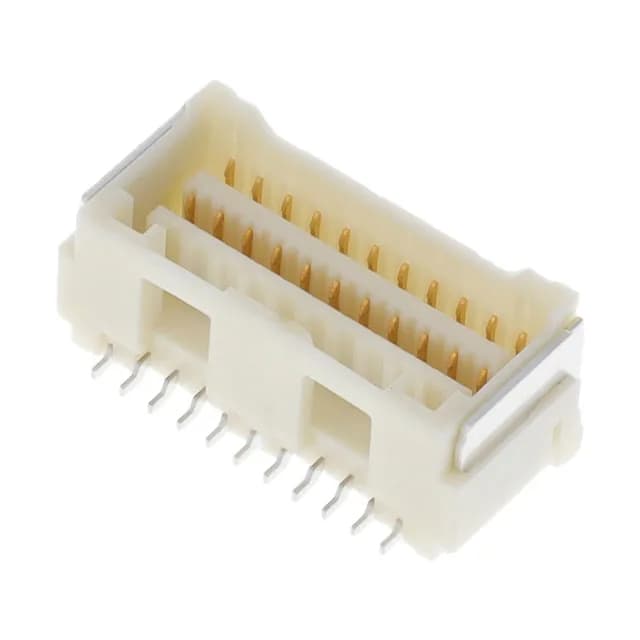

Molex CLIK-Mate 213227 series, 2132272270, 22-position dual-row receptacle, 1.50mm pitch, SMT, gold-plated forked contacts, latch holder, natural PA housing, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | CLIK-Mate 213227 |
| Type | Forked |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Latch Holder |
| Voltage rating | 100VAC/DC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.346\" (8.80mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Pick and Place, Solder Retention |
| Termination | Solder |
| Rows | 2 |
| Pitch | 0.059\" (1.50mm) |
| Positions | 22 |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 39.4µin (1.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 2132272270 is a 22-position, dual-row receptacle from Molex's CLIK-Mate 213227 series, designed for board-to-cable/wire applications with a 1.50mm pitch. Surface-mount termination with solder retention and pick-and-place features suit it for automated assembly; the latch holder provides a positive lock against vibration-induced disconnect.
The 2132272270 mates with a CLIK-Mate 213227 series pin header of 1.50mm pitch and 22 positions in a dual-row layout. The specific header part number depends on your mounting orientation and plating preference — check the series listing for the matching male connector.
