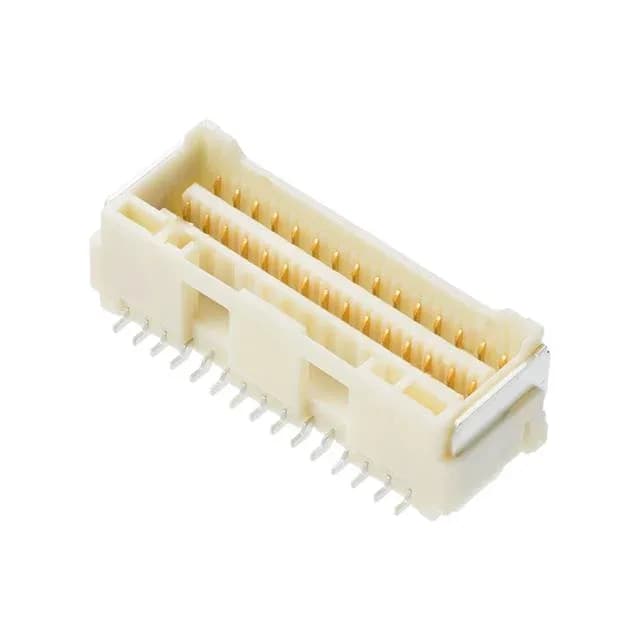

Molex CLIK-Mate 213227 series, 2132273070, 30-position dual-row receptacle, 1.50 mm pitch, surface mount, gold-plated fork contacts, latch holder, natural PA housing, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | CLIK-Mate 213227 |
| Type | Forked |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Latch Holder |
| Voltage rating | 100VAC/DC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.346\" (8.80mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Pick and Place, Solder Retention |
| Termination | Solder |
| Rows | 2 |
| Pitch | 0.059\" (1.50mm) |
| Positions | 30 |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 39.4µin (1.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The mating contact finish is 30.0 µinch (0.76 µm) gold over copper alloy, while the post (solder tail) finish is 39.4 µinch (1.00 µm) tin.
The forked contact type in the receptacle mates with the blade terminal in the plug.
The mating pitch is 0.059" (1.50 mm).
Yes, it is a surface mount receptacle with solder termination, including pick-and-place features and solder retention tabs.
Yes, the fastening type is a latch holder, which provides positive retention against vibration.
Pricing and availability are confirmed at quote time — submit an RFQ for current lead time and pricing.
