Molex 2169890001 — USB, Type-C & HDMI Connectors

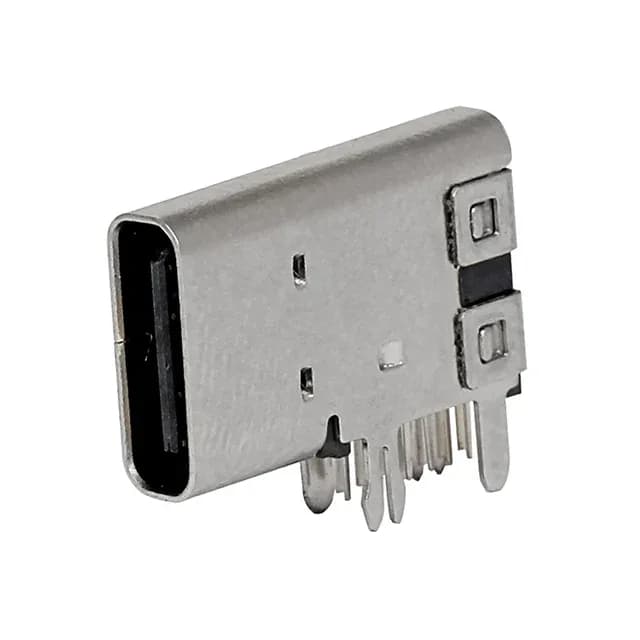

2169890001 Molex USB-C Receptacle, 5A, 10k Cycles

MPN2169890001
Active

Molex, Series 216989, USB-C (USB TYPE-C) receptacle, 24 contacts (14+10 dummy), 5A rated, 30VAC/DC, shielded, through-hole right-angle mounting, gold contact finish, USB 2.0 specification, 10000 mating cycles, -40°C ~ 85°C operating range, UL94 V-0 housing.

$1.7800Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2169890001 specifications
ParameterValue
Series216989
MountingThrough Hole, Right Angle
Connector typeUSB-C (USB TYPE-C)
Voltage - rated30VAC/DC
Current rating5A
Positions24 (14+10 Dummy)
Mounting featureVertical, Flag
Operating temperature-40°C ~ 85°C
Shell (Shielding material)Steel, Stainless
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTape & Reel (TR) Cut Tape (CT)
ShieldingShielded
TerminationSolder
Mating cycles10000
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

USB-C receptacle with 5A current capability

This Molex 2169890001 is a USB-C (USB TYPE-C) receptacle, the board-mounted half for a USB-C port. It carries 24 contacts (14+10 dummy), rated 5A per contact at 30VAC/DC, and is shielded for EMI containment. The 5A rating is the thermal limit per contact; at full load every amp makes heat, so derate for the real cabinet ambient. The gold contact finish supports the 10,000 mating cycle durability.

Through-hole right-angle mounting and USB 2.0 signal path

Mounting is through-hole, right-angle, with a vertical flag feature — it sits perpendicular to the PCB, suitable for board-edge or panel-mount USB ports. The USB 2.0 specification limits data rate to 480 Mbps; it is not USB 3.x compatible. Housing material is rated UL94 V-0.

The lifecycle status is Active — no obsolescence or end-of-life notice on record.

Frequently asked questions

What is the pinout of 2169890001?

The connector has 24 contacts arranged as 14 signal/power contacts plus 10 dummy (unused) contacts per the USB-C standard. The exact pin assignment follows the USB Type-C receptacle pinout defined in the USB 2.0 specification.
