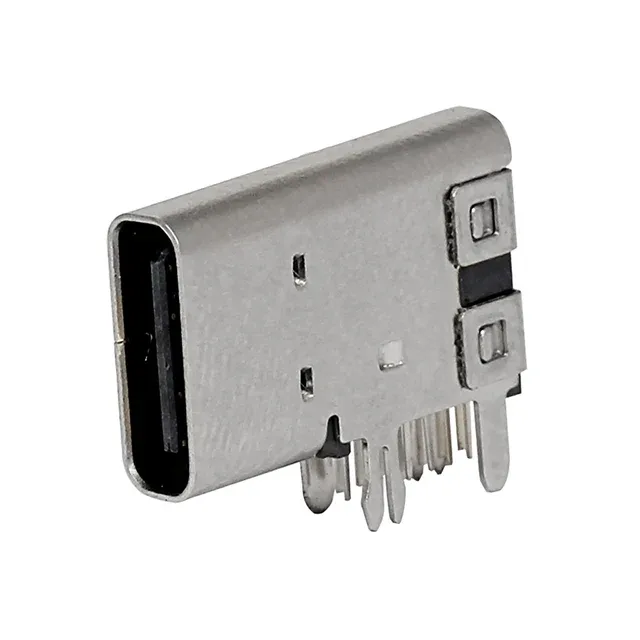

2169890002
Molex
UnshieldedReceptacleTape & Reel (TR) Cut Tape (CT)
Ref. price$1.6100
Lead time on requestGet quote
Molex 2169 Usb Typec Series
2 variants · Molex
About the Molex 2169 Usb Typec Series
The Molex 2169 Usb Typec Series series groups 2 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common connector type of USB-C (USB TYPE-C), contact finish of Gold and gender of Receptacle. Variants differ by current rating, features and mating cycles, so you can match the exact current rating your application requires using the selection guide below. All listed Molex 2169 Usb Typec Series part numbers are active and orderable.
Select a variant by
- Current rating
- - · 5A
- Features
- - · Board Lock
- Mating cycles
- - · 10000
- Operating temperature
- - · -40°C ~ 85°C
- Shielding
- Shielded · Unshielded
- Specifications
- - · USB 2.0
- Voltage - rated
- - · 30VAC/DC
Shared specifications
- Connector type
- USB-C (USB TYPE-C)
- Contact finish
- Gold
- Gender
- Receptacle
- Insulation color
- -
- IP rating
- -
- Material flammability rating
- UL94 V-0
- Mounting
- Through Hole, Right Angle
- Mounting feature
- Vertical, Flag
- Number of ports
- 1
- Package
- Tape & Reel (TR) Cut Tape (CT)
- Positions
- 24 (14+10 Dummy)
- Shell (Shielding material)
- Steel, Stainless
Variant comparison
| Parameter | 2169890002 | 2169890001 |
|---|---|---|
| Current rating | - | 5A |
| Features | Board Lock | - |
| Mating cycles | - | 10000 |
| Operating temperature | - | -40°C ~ 85°C |
| Shielding | Unshielded | Shielded |
| Specifications | - | USB 2.0 |
| Voltage - rated | - | 30VAC/DC |
Request a quote on any Molex 2169 Usb Typec Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
