Molex 5031541290 — Female Socket Headers

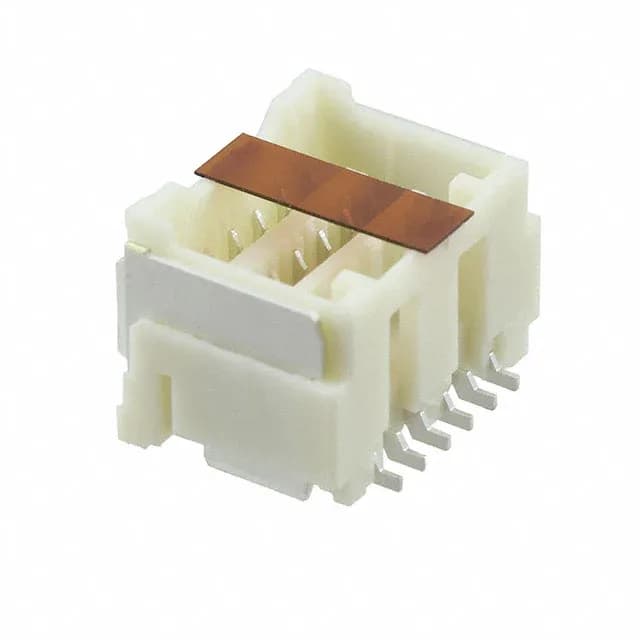

Molex 5031541290 CLIK-Mate Receptacle 12 Pos 1.50 mm Tin SMD

MPN5031541290
Active

Molex CLIK-Mate 503154 series, 5031541290, receptacle, 12 positions, 2 rows, 1.50 mm pitch, tin mating finish, surface-mount, latch holder, -40°C to 105°C, UL94 V-0.

$2.5800Ref. price · indicative, final on quote
Molex 5031541290 datasheet (PDF)
RoHSROHS3 Compliant
SeriesCLIK-Mate 503154
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5031541290 key specifications
ParameterValue
SeriesCLIK-Mate 503154
TypeForked
MountingSurface Mount
Connector typeReceptacle
Fastening typeLatch Holder
Operating temperature-40°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBeige
Insulation height0.344\" (8.75mm)
Insulation materialResin
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire

All specifications

5031541290 additional specifications
ParameterValue
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesPick and Place, Solder Retention
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Lighting, Medical
Rows2
Pitch0.059\" (1.50mm)
Positions12
Contact finish - postTin
Contact finish - matingTin
Contact finish thickness - post39.4µin (1.00µm)
Contact finish thickness - mating39.4µin (1.00µm)

Product details

1.50 mm pitch, 12-position SMT receptacle for board-to-wire

Tin plating and temperature range: cost-effective for moderate duty

Tin is a good choice for applications with infrequent mating cycles — it is less noble than gold but carries sufficient wear resistance at this thickness for hundreds of mates in a clean environment.

Surface-mount with solder retention and pick-and-place features

This receptacle is surface-mount with solder termination. The forked contact type provides a reliable interface with the mating pin header.

Frequently asked questions

What is the mating connector for Molex 5031541290?

The mating half is a Molex CLIK-Mate 503154 series pin header, board-to-cable/wire style, with 12 positions in 2 rows at 1.50 mm pitch. The latch holder on the receptacle engages with the corresponding lock on the plug header. Confirm the header part number against the same series and pitch.
