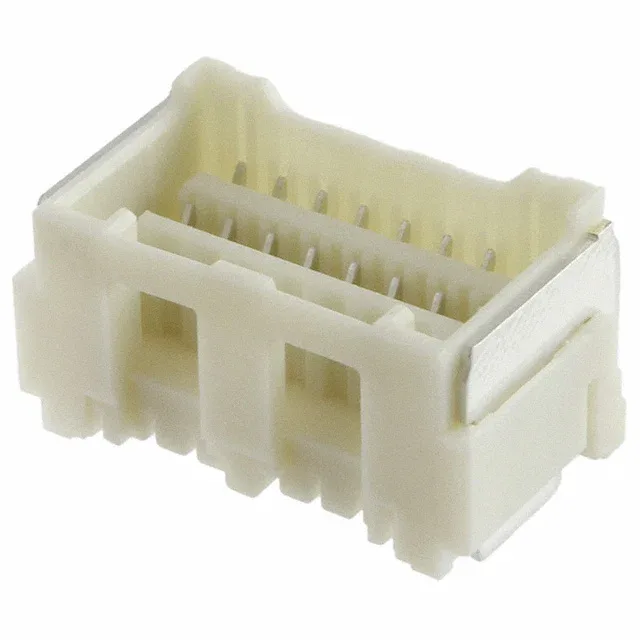

Molex 5031 Female Socket Headers Series

8 variants · MolexAll Female Socket Headers →

About the Molex 5031 Female Socket Headers Series

IC Source Direct is a China connector distributor, supplier and independent procurement agent for Molex 5031 Female Socket Headers Series components, matching housing, contact and mating cycles across the Shenzhen interconnect channel. The Molex 5031 Female Socket Headers Series series groups 8 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common applications of Automotive, General Purpose, Industrial, Lighting, Medical, connector type of Receptacle and contact finish - mating of Tin. Variants differ by current rating, insulation color and insulation height, so you can match the exact current rating your application requires using the selection guide below. All listed Molex 5031 Female Socket Headers Series part numbers are active and orderable.

Select a variant by

Current rating: - · 1A per Contact
Insulation color: Beige · Black · Natural
Insulation height: 0.360\" (9.14mm) · 0.362\" (9.20mm)
Insulation material: Polyamide (PA), Nylon · Resin
Positions: 8 · 10 · 12 · 14 · 16
Voltage rating: - · 100V

Shared specifications

Applications: Automotive, General Purpose, Industrial, Lighting, Medical
Connector type: Receptacle
Contact finish - mating: Tin
Contact finish - post: Tin
Contact finish thickness - mating: 39.4µin (1.00µm)
Contact finish thickness - post: 39.4µin (1.00µm)
Contact length - post: -
Contact material: Copper Alloy
Contact shape: -
Fastening type: Latch Holder
Features: Pick and Place, Solder Retention
IP rating: -

Variant comparison

Parameter	5031480890	5031481070	5031481090	5031481271	5031481290	5031481471
Current rating	-	1A per Contact	-	1A per Contact	-	1A per Contact
Insulation color	Beige	Natural	Beige	Black	Beige	Black
Insulation height	0.360\" (9.14mm)	0.362\" (9.20mm)	0.360\" (9.14mm)	0.362\" (9.20mm)	0.360\" (9.14mm)	0.362\" (9.20mm)
Insulation material	Resin	Polyamide (PA), Nylon	Resin	Polyamide (PA), Nylon	Resin	Polyamide (PA), Nylon
Positions	8	10	10	12	12	14
Voltage rating	-	100V	-	100V	-	100V

Request a quote on any Molex 5031 Female Socket Headers Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
