Molex 5031481690

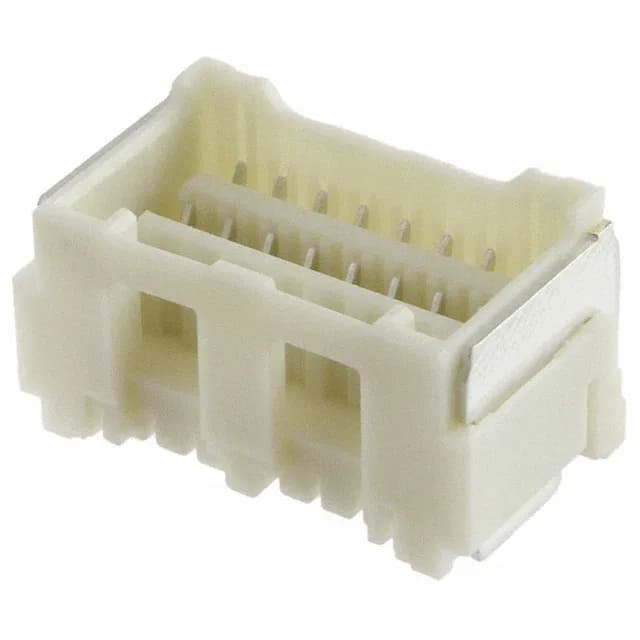

Molex 5031481690 16-Pin 1.50mm Pitch SMT Receptacle

MPN 5031481690
Active

Molex CLIK-Mate 503148 series, 5031481690 — 16-position dual-row receptacle, 1.50mm pitch, surface-mount right-angle, tin-plated contacts, latch holder, beige UL94 V-0 housing, -40°C to 105°C.

$2.9000 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesCLIK-Mate 503148
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5031481690 key specifications
ParameterValue
SeriesCLIK-Mate 503148
TypeForked
MountingSurface Mount, Right Angle
Connector typeReceptacle
Fastening typeLatch Holder
Operating temperature-40°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBeige
Insulation height0.360\" (9.14mm)
Insulation materialResin
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire

All specifications

5031481690 additional specifications
ParameterValue
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesPick and Place, Solder Retention
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Lighting, Medical
Rows2
Pitch0.059\" (1.50mm)
Positions16
Contact finish - postTin
Contact finish - matingTin
Contact finish thickness - post39.4µin (1.00µm)
Contact finish thickness - mating39.4µin (1.00µm)

Product details

Board-edge receptacle for 1.50mm pitch wire-to-board

The 5031481690 is a 16-position, dual-row receptacle from the Molex CLIK-Mate 503148 series, designed for board-to-cable/wire applications at 1.50mm pitch. Its surface-mount, right-angle orientation places the mating interface parallel to the PCB, suiting low-profile board-edge connections in space-constrained enclosures.
