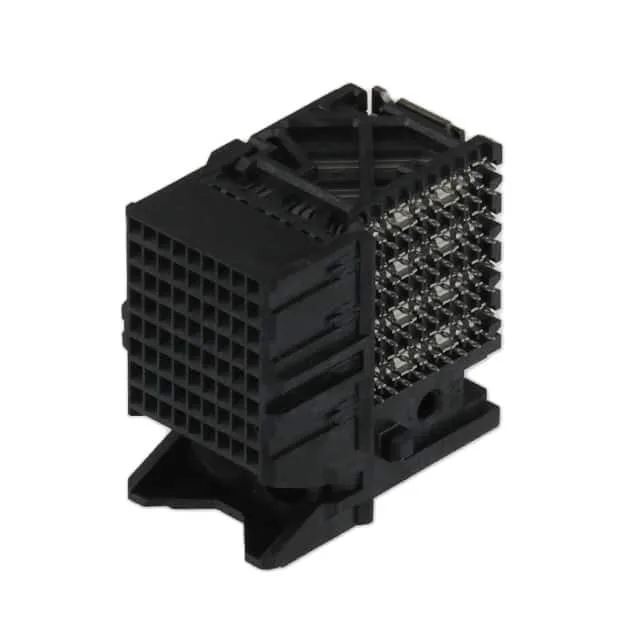

Molex 761703038
MPN761703038
Active
CONN RCPT IMPACT 72POS EDGE MNT
$14.52Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesImpact 76170
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Impact 76170 |
| Mounting | Board Edge, Through Hole, Right Angle |
| Connector type | Receptacle, Female Sockets |
| Voltage rating | 30V |
| Operating temperature | -55°C ~ 85°C |
| Color | Black |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.053\" (1.35mm) |
| Package | Tray |
| Features | Board Guide |
| Termination | Press-Fit |
| Contact finish | Gold |
| Rows | 9 |
| Number of columns | 8 |
| Positions | 72 |
| Contact layout, typical | 24 Differential Pairs |
| Contact finish thickness | 30.0µin (0.76µm) |
