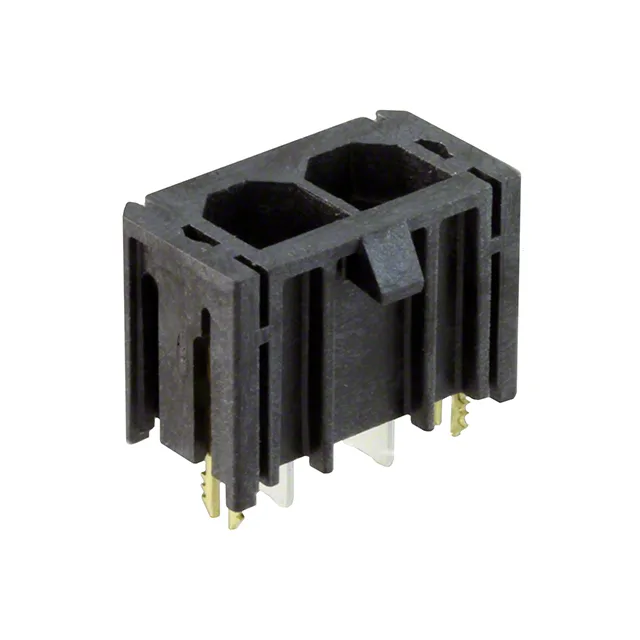

Molex 1720 Series

6 variants · Molex

About the Molex 1720 Series

The Molex 1720 Series series groups 6 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common color of Black, connector type of Header, Male Blades and contact finish of Silver. Variants differ by features, mounting type and positions, so you can match the exact features your application requires using the selection guide below. All listed Molex 1720 Series part numbers are active and orderable.

Select a variant by

Features
Board Lock, Finger-Proof · Finger-Proof
Mounting type
Through Hole · Through Hole, Right Angle
Positions
2 · 3 · 4 · 6

Shared specifications

Color
Black
Connector type
Header, Male Blades
Contact finish
Silver
Contact finish thickness
100.0µin (2.54µm)
Contact material
Copper
Current rating
30 A
Fastening type
Locking Ramp
Material - insulation
Liquid Crystal Polymer (LCP), Glass Filled
Operating temperature
-40°C ~ 125°C
Package
Tray
Pitch
0.295\" (7.50mm)
Rows
1

Variant comparison

Parameter172042020217204203021720420201172042060217204302011720430401
FeaturesBoard Lock, Finger-ProofBoard Lock, Finger-ProofFinger-ProofBoard Lock, Finger-ProofFinger-ProofFinger-Proof
Mounting typeThrough HoleThrough HoleThrough HoleThrough HoleThrough Hole, Right AngleThrough Hole, Right Angle
Positions232624
