Molex 1720420202

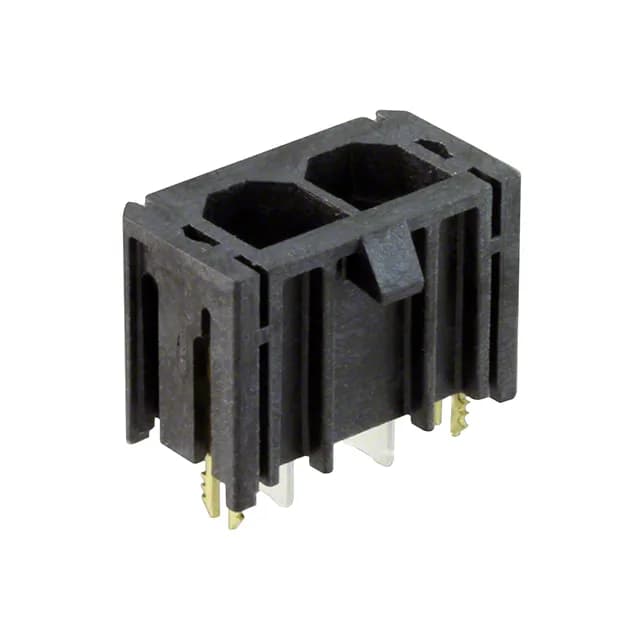

Molex Super Sabre 1720420202 Header, 2 Pos, 30 A, 7.50 mm

MPN 1720420202
Active

Molex Super Sabre 172042 2-position header, male blades, 7.50 mm pitch, 1 row, through-hole solder, 30 A, 600 V, silver-plated contacts, locking ramp, board lock.

$2.2600 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesSuper Sabre 172042
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1720420202 specifications
ParameterValue
SeriesSuper Sabre 172042
MountingThrough Hole
Connector typeHeader, Male Blades
Fastening typeLocking Ramp
Voltage rating600 V
Current rating30 A
Operating temperature-40°C ~ 125°C
ColorBlack
Contact materialCopper
Material - insulationLiquid Crystal Polymer (LCP), Glass Filled
Pitch0.295\" (7.50mm)
PackageTray
FeaturesBoard Lock, Finger-Proof
TerminationSolder
Contact finishSilver
Rows1
Positions2
Contact finish thickness100.0µin (2.54µm)

Product details

Power-class header for high-current board-to-wire connections

The Molex 1720420202 is a 2-position male blade header from the Super Sabre 172042 series, designed for power distribution where each circuit carries bus-level current. Silver-plated copper contacts at 100.0 µ" thickness handle repeated high-current mating without the galling risk of tin at these amperages. The liquid crystal polymer (LCP) glass-filled housing holds dimensional stability through wave solder and sees little creep under continuous thermal cycling.

30 A per circuit is not a signal-level rating — each blade is sized to carry main DC rail current or high-power AC. The silver contact finish, rather than gold or tin, is chosen for this duty: silver has lower bulk resistivity than tin and better high-current cycle life than gold flash. The 100.0 µ" thickness is heavy enough to survive dozens of mate-unmate cycles at full current without wearing through to the copper base.

Through-hole solder termination on 0.295" (7.50 mm) centers; the board lock posts are integral to the solder tails and require no separate hardware.
