Phoenix Contact 3209015
MPN3209015
Active

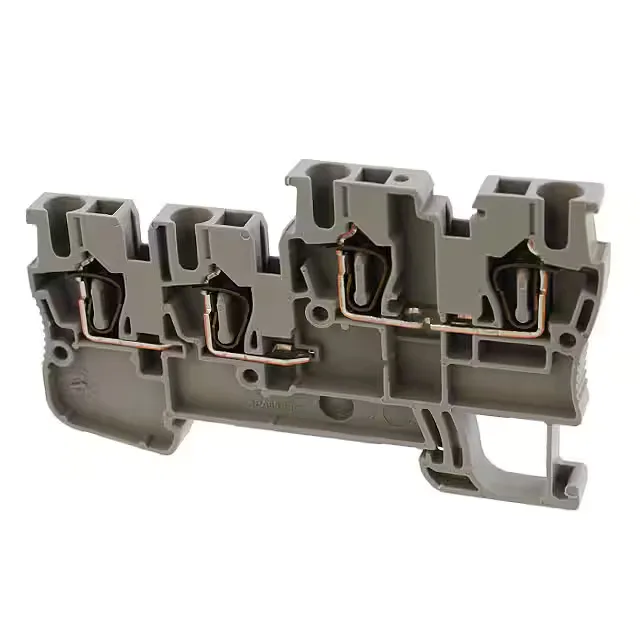

CONN TERM BLK FEED THRU 12-28AWG
$5.94Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesCLIPLINE STIO
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Feed Through, Isolated (2) |
| Series | CLIPLINE STIO |
| Voltage - UL | 300V |
| Voltage - IEC | 250V |
| Current - UL | 18 A |
| Current - IEC | 18 A |
| Terminal - width | 5.2mm |
| Wire gauge or range - AWG | 12-28 AWG |
| Wire gauge or range - mm2 | 0.08-4mm² |
| Color | Gray |
| Material - insulation | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Number of levels | 2 |
| Stripping length | 10mm |
| Termination style | Push In, Spring |
| Positions | 4 |
