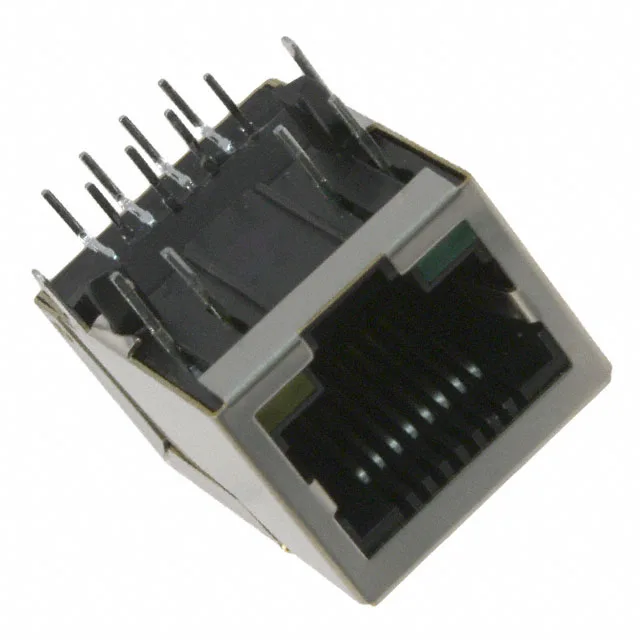

J00-0014NL
Pulse Electronics
PULSEJACK™ J0ShieldedTube
Ref. price$6.2400
Lead time on requestGet quote
Pulse Electronics J000 Modular Rj Series
5 variants · Pulse Electronics
About the Pulse Electronics J000 Modular Rj Series
The Pulse Electronics J000 Modular Rj Series series groups 5 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common applications of 10/100 Base-TX, AutoMDIX, connector type of RJ45 and contact finish of Gold. Variants differ by LED color and shielding, so you can match the exact LED color your application requires using the selection guide below. All listed Pulse Electronics J000 Modular Rj Series part numbers are active and orderable.
Select a variant by
- LED color
- Does Not Contain LED · Green - Yellow
- Shielding
- Shielded · Shielded, EMI Finger
Shared specifications
- Applications
- 10/100 Base-TX, AutoMDIX
- Connector type
- RJ45
- Contact finish
- Gold
- Contact finish thickness
- 15.0µin (0.38µm)
- Contact material
- Phosphor Bronze
- Features
- Board Guide
- Height above board
- 0.545\" (13.84mm)
- Housing material
- Thermoplastic
- Mounting
- Through Hole
- Number of cores per jack
- 4
- Number of ports
- 1
- Operating temperature
- 0°C ~ 70°C
Variant comparison
| Parameter | J00-0014NL | J00-0045NL | J00-0061NL | J0006D01BNL | J0006D21BNL |
|---|---|---|---|---|---|
| LED color | Does Not Contain LED | Green - Yellow | Does Not Contain LED | Green - Yellow | Green - Yellow |
| Shielding | Shielded | Shielded | Shielded, EMI Finger | Shielded | Shielded, EMI Finger |
