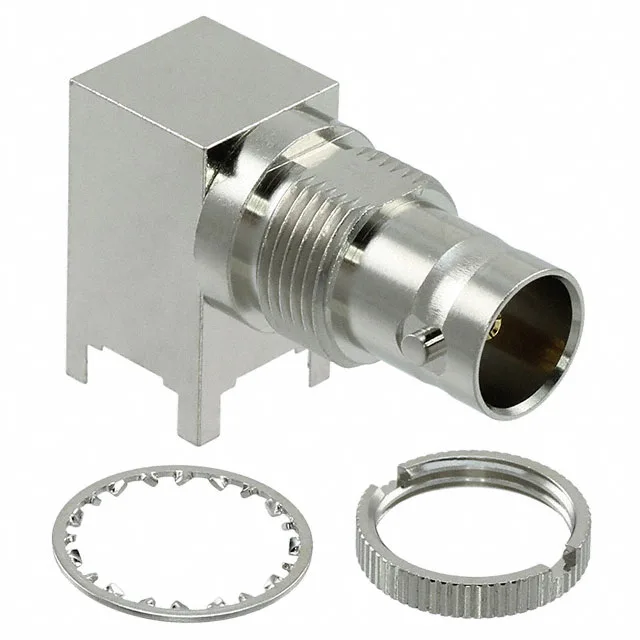

BNC7T-J-P-GN-RA-BH1
Samtec Inc.
75 Ohms3 pcs - 1 Connector, 1 Lockwasher, 1 Nut-65°C ~ 125°C
Ref. price$14.1300
Lead time on requestGet quote ›
Samtec Inc. BNC7T Series
10 variants · Samtec Inc.
About the Samtec Inc. BNC7T Series
The Samtec Inc. BNC7T Series series groups 10 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common body finish of Nickel, center contact plating of Gold and contact termination of Solder. Variants differ by body material, cable group and center contact material, so you can match the exact body material your application requires using the selection guide below. All listed Samtec Inc. BNC7T Series part numbers are active and orderable.
Select a variant by
- Body material
- Brass · Zinc
- Cable group
- - · RG-179
- Center contact material
- Brass · Copper Alloy
- Connector type
- Jack, Female Socket · Plug, Male Pin
- Dielectric material
- Polymethylpentene (PMP) · Polytetrafluoroethylene (PTFE)
- Frequency - max
- 4 GHz · 12 GHz
- Impedance
- 75 Ohms · 75Ohm
- Includes
- - · 3 pcs - 1 Connector, 1 Contact, 1 Ferrule · 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Shared specifications
- Body finish
- Nickel
- Center contact plating
- Gold
- Contact termination
- Solder
- Fastening type
- Bayonet Lock
- Features
- -
- Housing color
- Silver
- Ingress protection
- -
- Insertion loss
- -
- Mating cycles
- -
- Number of ports
- 1
- Voltage rating
- 500 V
Variant comparison
| Parameter | BNC7T-J-P-GN-RA-BH1 | BNC7T-J-P-GN-RA-BH2D | BNC7T-J-P-GN-ST-EM1 | BNC7T-J-P-GN-ST-EM1D | BNC7T-J-P-GN-ST-TH2D | BNC7T-J-P-HN-RA-BH1 |
|---|---|---|---|---|---|---|
| Body material | Brass | Zinc | Brass | Brass | Brass | Brass |
| Cable group | - | - | - | - | - | - |
| Center contact material | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy |
| Connector type | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket |
| Dielectric material | Polytetrafluoroethylene (PTFE) | Polymethylpentene (PMP) | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) |
| Frequency - max | 12 GHz | 12 GHz | 12 GHz | 12 GHz | 12 GHz | 12 GHz |
| Impedance | 75 Ohms | 75Ohm | 75Ohm | 75 Ohms | 75 Ohms | 75 Ohms |
| Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut | - | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut |
Request a quote on any Samtec Inc. BNC7T Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Samtec Inc. BNC7T Series variants differ?
- Samtec Inc. BNC7T Series part numbers differ by body material, cable group, center contact material and connector type. Use the selection guide above to pick by body material.
- How many Samtec Inc. BNC7T Series part numbers are listed?
- 10 Samtec Inc. BNC7T Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Samtec Inc. BNC7T Series?
- Request a quote (RFQ) for any Samtec Inc. BNC7T Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
