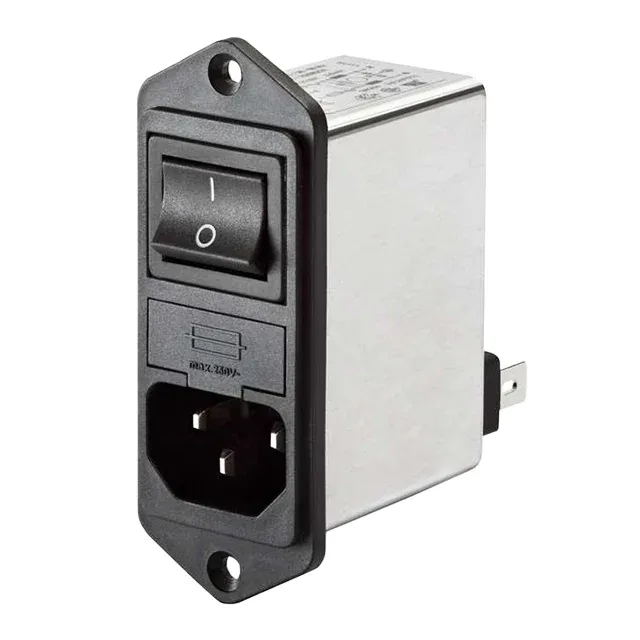

Schaffner EMC Inc. FN281-10-06
MPNFN281-10-06
Active
PWR ENT MOD RCPT IEC320-C14 PNL
$30.36Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFN 280
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | FN 280 |
| Filter type | Filtered (EMI, RFI) - Commercial |
| Mounting | Panel Mount, Flange |
| Connector type | IEC 320-C14 |
| Current rating - filter | 10A |
| IP rating | IP40 |
| Panel cutout | Rectangular - 29.00mm x 60.00mm |
| Material flammability rating | UL94 V-2 |
| Approval agency | CQC, CSA, ENEC, UL |
| Package | Tray |
| Features | Front or Rear Side Mount |
| Termination | Quick Connect - 0.250\" (6.3mm) |
| Switch features | Switch On-Off |
| Accomodates a fuse | Yes (Fuse Not Included) |
| Fuse holder, drawer | Fuse Holder |
| Positions | 3 |
