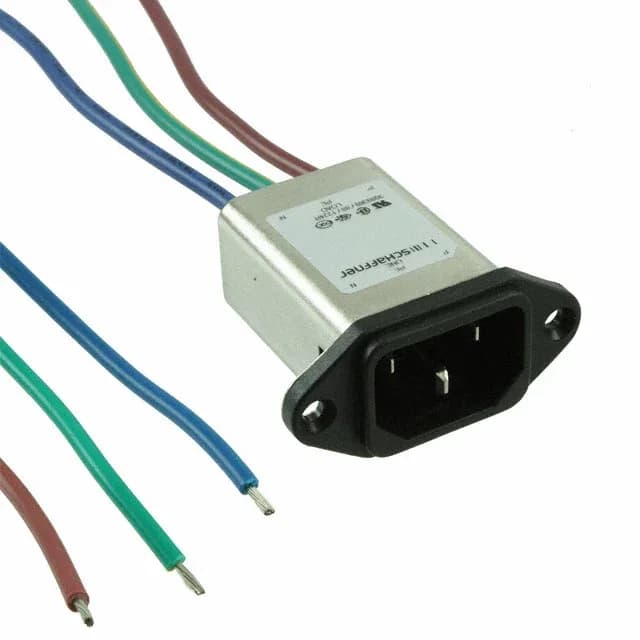

Schaffner EMC Inc. FN9222-1-07
MPNFN9222-1-07
Active
PWR ENT RCPT IEC320-C14 PNL WIRE
$9.7100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFN 9222
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | FN 9222 |
| Filter type | Filtered (EMI, RFI) - Commercial |
| Mounting | Panel Mount, Flange |
| Connector type | IEC 320-C14 |
| Current rating - filter | 1A |
| IP rating | IP40 |
| Panel cutout | Rectangular - 28.50mm x 21.50mm |
| Material flammability rating | UL94 V-2 |
| Approval agency | CQC, CSA, ENEC, UL |
| Package | Tray |
| Features | Front or Rear Side Mount |
| Termination | Wire Leads |
| Accomodates a fuse | No |
| Positions | 3 |
