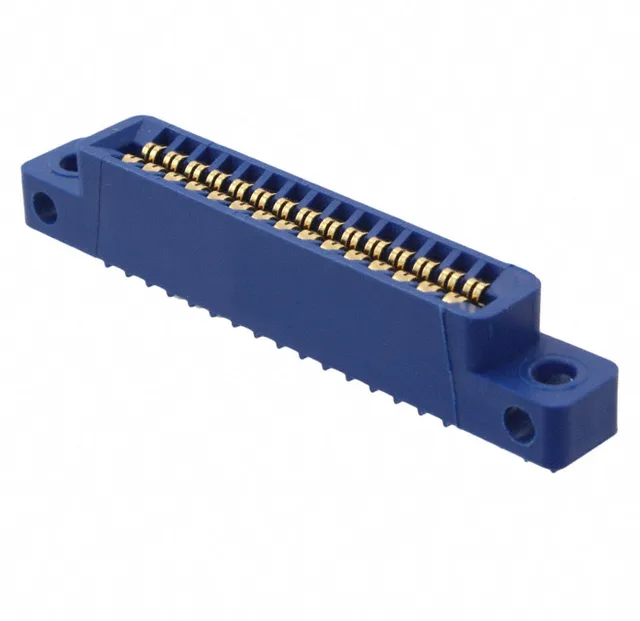

Sullins Connector Solutions EBC15DRAS
MPNEBC15DRAS
Active
CONN EDGE DUAL FMALE 30POS 0.100
$7.68Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Card type | Non Specified - Dual Edge |
| Type | Full Bellows |
| Mounting | Through Hole, Right Angle |
| Operating temperature | -65°C ~ 125°C |
| Color | Blue |
| Contact material | Phosphor Bronze |
| Material - insulation | Polybutylene Terephthalate (PBT) |
| Pitch | 0.100\" (2.54mm) |
| Gender | Female |
| Package | Tray |
| Read out | Dual |
| Termination | Solder |
All specifications
| Parameter | Value |
|---|---|
| Card thickness | 0.062\" (1.57mm) |
| Contact finish | Gold |
| Flange feature | Side Mount Opening, Unthreaded, 0.125\" (3.18mm) Dia |
| Rows | 2 |
| Positions | 30 |
| Contact finish thickness | 10.0µin (0.25µm) |
| Number of positions (Bay, row) | 15 |
