Sullins Connector Solutions transistor socket, order code TDU03DTON, 3 positions rectangular grid, 5 A, gold-plated beryllium copper mating contacts, through-hole solder termination, PPS housing, tray package.

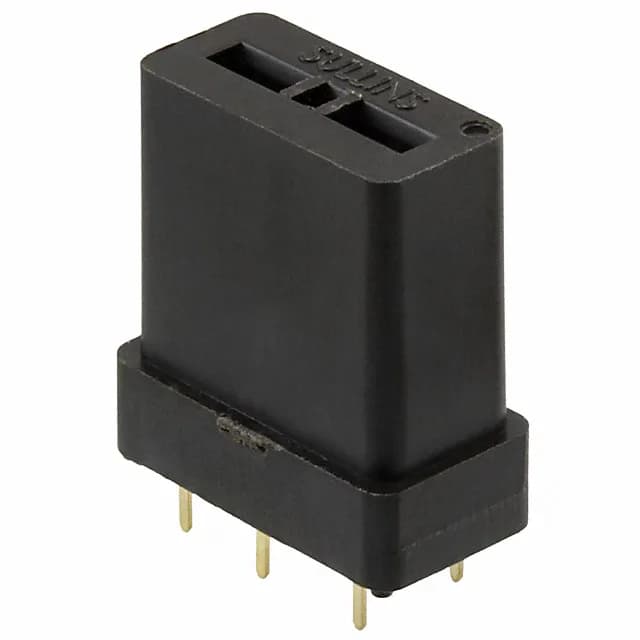

Sullins TDU03DTON Transistor Socket, 3-Pos, Gold, 5 A
MPNTDU03DTON
Active
Sullins Connector Solutions transistor socket, order code TDU03DTON, 3 positions rectangular grid, 5 A, gold-plated beryllium copper mating contacts, through-hole solder termination, PPS housing, tray package.
$13.8000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Transistor |
| Mounting | Through Hole |
| Current rating | 5 A |
| Operating temperature | -55°C ~ 175°C |
| Housing material | Polyphenylene Sulfide (PPS) |
| Contact material - post | Beryllium Copper |
| Contact material - mating | Beryllium Copper |
| Package | Tray |
| Features | Board Guide |
| Termination | Solder |
| Contact resistance | 30mOhm |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Termination post length | 0.130\" (3.30mm) |
| Contact finish thickness - post | 30.0µin (0.76µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
| Number of positions or pins | 3 (Rectangular) |
Product details
Frequently asked questions
What compliance documentation does Sullins provide for the TDU03DTON?
The TDU03DTON is RoHS3 compliant. No UL or IEC certification is listed in the available documentation.
What is the TDU03DTON's listed type and package?
The TDU03DTON is listed as a Type Transistor socket in a Tray package.
