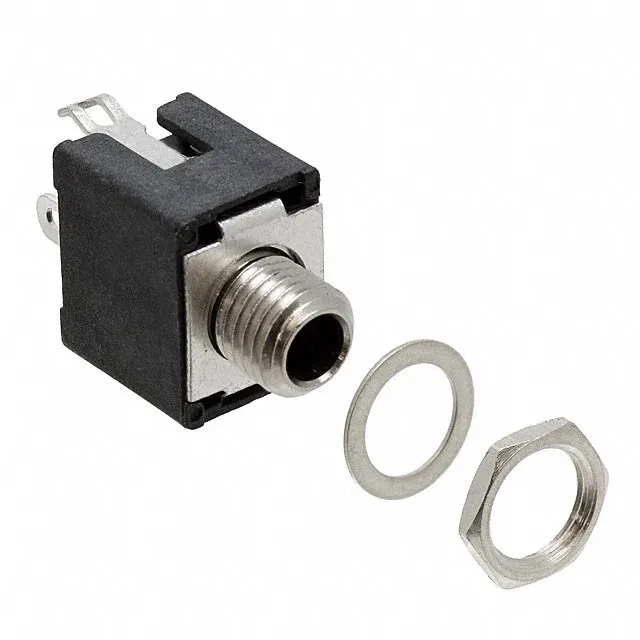

Switchcraft Inc. 142AX
MPN142AX
Active
CONN JACK MONO 3.55MM PNL MNT
$5.63Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesTINI-D-JAX®
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | TINI-D-JAX® |
| Mounting | Panel Mount |
| Connector type | Phone Jack |
| Voltage - rated | 48VDC |
| Current rating | 250 mA |
| Body color | Silver, Black |
| Body material | Copper Alloy |
| Contact material | Copper Alloy |
| Housing material | Plastic |
| Contact material - plating | Silver |
| Gender | Female |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Features | Mounting Hardware, Thread Lock |
| Includes | 3 pcs - 1 Connector, 1 Nut, 1 Washer |
| Shielding | Unshielded |
| Termination | Solder Eyelet(s) |
| Connector size | 1/4\"-32 |
| Signal lines | Mono |
| Actual diameter | 0.142\" (3.60mm) |
| Panel hole size | 0.250\" (6.35mm) |
| Internal switch | Single Switch |
| Number of positions (Contacts) | 2 Conductors, 3 Contacts |
| Industry recognized mating diameter | 3.55mm (0.14\", Tini Plug) |
