How do the TE Connectivity AMP Connectors 1182787 Series variants differ?

TE Connectivity AMP Connectors 1182787 Series part numbers differ by contact length - post, current rating, insulation height and mounting type. Use the selection guide above to pick by contact length - post.

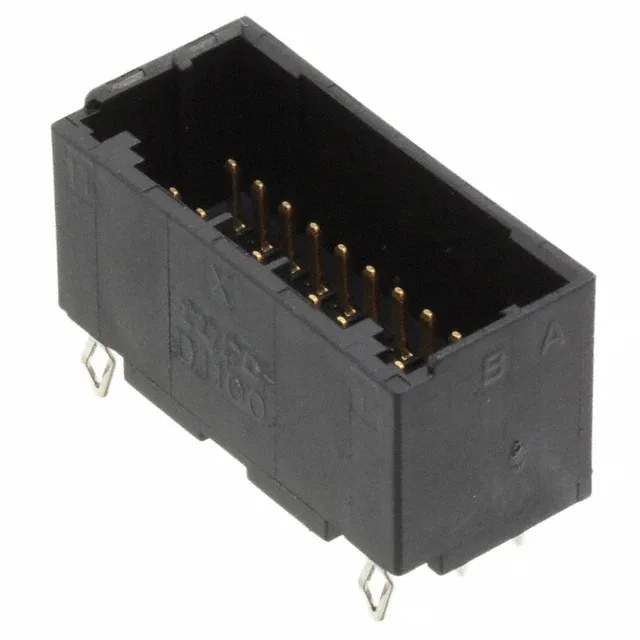

TE Connectivity AMP Connectors 1182787 Series

20 variants · TE Connectivity AMP Connectors

About the TE Connectivity AMP Connectors 1182787 Series

The TE Connectivity AMP Connectors 1182787 Series series groups 20 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common applications of General Purpose, Industrial, connector type of Header and contact finish - mating of Gold. Variants differ by contact length - post, current rating and insulation height, so you can match the exact contact length - post your application requires using the selection guide below. All listed TE Connectivity AMP Connectors 1182787 Series part numbers are active and orderable.

Select a variant by

Contact length - post: 0.120\" (3.05mm) · 0.122\" (3.10mm)
Current rating: 3A · 5A
Insulation height: 0.465\" (11.80mm) · 0.490\" (12.44mm)
Mounting type: Through Hole · Through Hole, Right Angle
Operating temperature: -55°C ~ 105°C · -55°C~105°C
Package: Bulk · Tube
Pitch: 0.079\" (2.00mm) · 0.098\" (2.50mm)
Positions: 4 · 6 · 8 · 10 · 20 · 22 · 26 · 28 · 30 · 32 · 34 · 40

Shared specifications

Applications: General Purpose, Industrial
Connector type: Header
Contact finish - mating: Gold
Contact finish - post: Tin
Contact finish thickness - mating: 15.0µin (0.38µm)
Contact finish thickness - post: 78.7µin (2.00µm)
Contact length - mating: -
Contact material: Copper Alloy
Contact shape: Square
Fastening type: Detent Lock
Features: Board Lock
Gender: Male Pin

Variant comparison

Parameter	1-1827872-0	1-1827872-1	1-1827872-3	1-1827872-4	1-1827872-5	1-1827872-6
Contact length - post	0.120\" (3.05mm)	0.120\" (3.05mm)	0.120\" (3.05mm)	0.120\" (3.05mm)	0.120\" (3.05mm)	0.120\" (3.05mm)
Current rating	3A	3A	3A	3A	3A	3A
Insulation height	0.490\" (12.44mm)	0.490\" (12.44mm)	0.490\" (12.44mm)	0.490\" (12.44mm)	0.490\" (12.44mm)	0.490\" (12.44mm)
Mounting type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Operating temperature	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C
Package	Tube	Tube	Bulk	Tube	Tube	Tube
Pitch	0.079\" (2.00mm)	0.079\" (2.00mm)	0.079\" (2.00mm)	0.079\" (2.00mm)	0.079\" (2.00mm)	0.079\" (2.00mm)
Positions	40	22	26	28	30	32

Request a quote on any TE Connectivity AMP Connectors 1182787 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.

Frequently asked questions

How do the TE Connectivity AMP Connectors 1182787 Series variants differ?: TE Connectivity AMP Connectors 1182787 Series part numbers differ by contact length - post, current rating, insulation height and mounting type. Use the selection guide above to pick by contact length - post.
How many TE Connectivity AMP Connectors 1182787 Series part numbers are listed?: 20 TE Connectivity AMP Connectors 1182787 Series part numbers are listed, each with specifications and a datasheet where available.
How do I get pricing and lead time for TE Connectivity AMP Connectors 1182787 Series?: Request a quote (RFQ) for any TE Connectivity AMP Connectors 1182787 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
