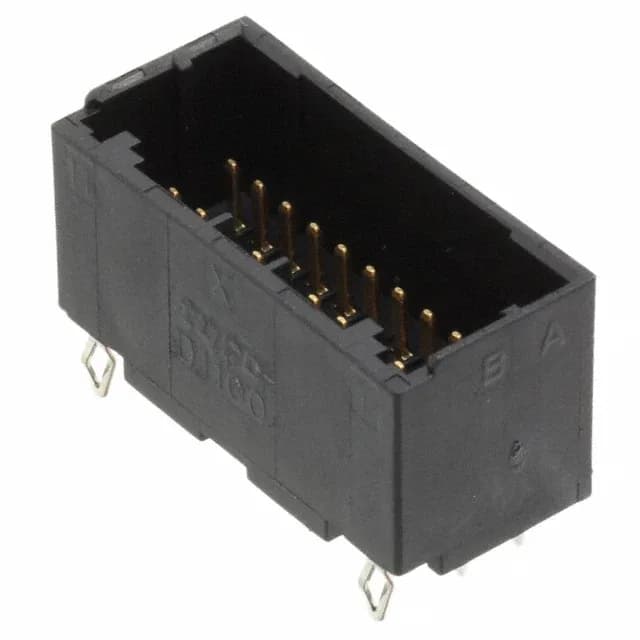

TE Connectivity AMP Connectors, Dynamic D-1100 series, 1-1827872-1 header, 22 positions, 2.00 mm pitch, shrouded - 4 wall, board lock, through hole, solder termination, gold mating contact, 3 A, 125 V.
| Parameter | Value |
|---|---|
| Series | Dynamic D-1100 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 125V |
| Current rating | 3A |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.490\" (12.44mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 22 |
| Row spacing - mating | 0.130\" (3.30mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 1-1827872-1: This is a 22-position, dual-row header on 2.00 mm pitch with a 3.30 mm row spacing, rated 3 A per contact at 125 V. Paired with the detent lock fastening, the mated connector stays put in a 105 °C cabinet under vibration.
That gold layer gives you reliable low-resistance connections across repeated mating cycles — think field-serviceable modules or test fixtures.
This is a board-to-board or cable header. It mates with a Dynamic D-1100 series receptacle (same 2.00 mm pitch, dual-row). The detent lock requires the matching housing with the locking ramp.
Yes, it is ROHS3 compliant.
Yes, the board lock feature is included — it holds the header in place during wave soldering and adds mechanical retention against cable pull.
