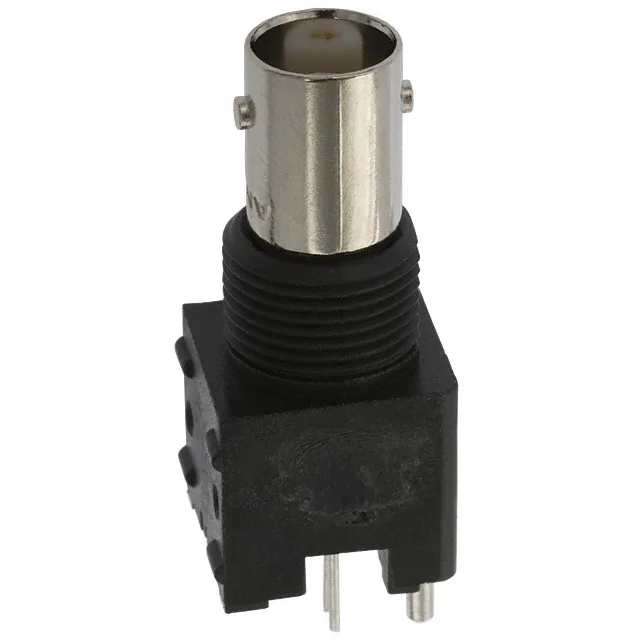

5227222-6 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 5227222-6 BNC Jack, 50 Ohm, 4 GHz, Bulkhead

MPN5227222-6
Active

TE Connectivity BNC jack, female socket, 50 Ohm, 4 GHz, 500 V, panel mount through hole, solder termination, gold center contact, bulk.

$4.6100Ref. price · indicative, final on quote
5227222-6 datasheet
StockIn Stock (44)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5227222-6 Technical Specifications
ParameterValue
Mounting typePanel Mount, Through Hole
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Mounting featureBulkhead - Front Side Nut
Operating temperature-55°C ~ 85°C
Body materialZinc
Housing colorBlack, Silver
Dielectric materialPolymethylpentene (PMP)
Center contact materialPhosphor Bronze
PackageBulk
FeaturesBoard Guide, Isolated
Impedance50 Ohms
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

The 5227222-6: It mounts in a panel bulkhead using a front-side nut and also has through-hole solder tails for PCB attachment — a dual-mount approach that lets you secure the connector to the enclosure and the board simultaneously.

The nickel-plated zinc body provides the ground reference and corrosion resistance for the panel-mount environment. The isolated feature means the connector body is electrically isolated from the mounting panel, which matters when you need to break ground loops or float the shield.

The bulkhead mounting feature (front-side nut) lets you install it from the outside of the panel, with the nut tightening against the panel face.

Frequently asked questions

What is the impedance of 5227222-6?

That impedance matches standard RF test equipment, video distribution, and 50 Ohm cable types like RG58 and RG174.

Is 5227222-6 compatible with RG174 cable?

However, the connector's center contact and shield termination are solder-type, so you will need to solder the center conductor and braid — no crimp barrel is specified. Confirm the cable outer diameter fits the panel-mount clearance before committing.

Where can I buy 5227222-6 with stock?

Stock levels and lead time are confirmed at quote time — submit an RFQ for current availability.
