The 1-1337451-0: The 4 GHz bandwidth covers most lab and comms gear below the C-band; above that, the VSWR rises and the connector starts to look like a discontinuity. The 500 V rating is for the dielectric between centre and outer — at RF power levels, the voltage swing is usually lower, but it gives headroom for high-power pulsing or DC bias on the line.

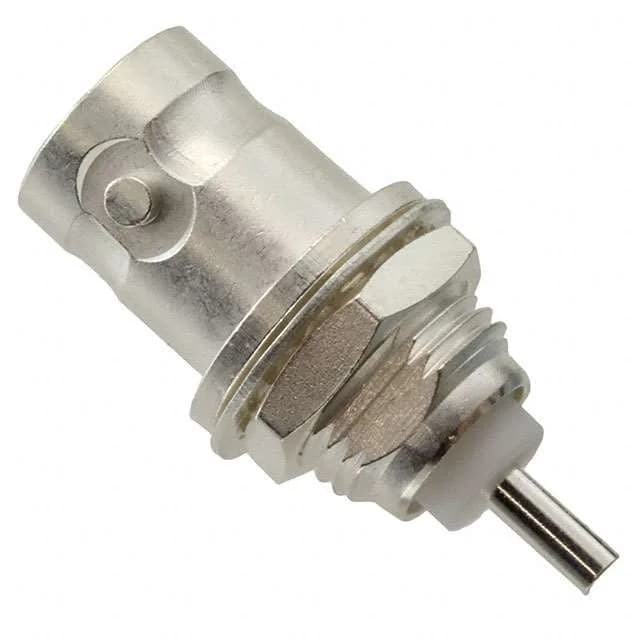

TE 1-1337451-0 BNC Jack, 50 Ohm, 4 GHz, Silver Body
MPN1-1337451-0
Active
TE Greenpar BNC jack, female socket, 50 Ohm, 4 GHz, 500 V, panel mount bulkhead, bayonet lock, silver body, includes lockwasher and nut.
$5.2300Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Greenpar |
| Mounting | Panel Mount |
| Connector type | Jack, Female Socket |
| Fastening type | Bayonet Lock |
| Voltage rating | 500 V |
| Frequency - max | 4 GHz |
| Mounting feature | Bulkhead - Rear Side Nut |
| Operating temperature | -65°C ~ 165°C |
| Body material | Brass |
| Housing color | Silver |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Brass |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Extended Insulation |
| Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut |
| Impedance | 50 Ohms |
| Body finish | Silver |
| Mating cycles | 500 |
| Number of ports | 1 |
| Shield termination | Solder |
| Contact termination | Solder Cup |
| Center contact plating | Silver |
Product details
Frequently asked questions
Where can I buy the TE 1-1337451-0 BNC jack?
Submit a request for current pricing and availability — confirmed at quote time.
Does the 1-1337451-0 include the mounting hardware?
Yes, the package includes three pieces: the connector body, one lockwasher, and one nut. No separate hardware order needed.
