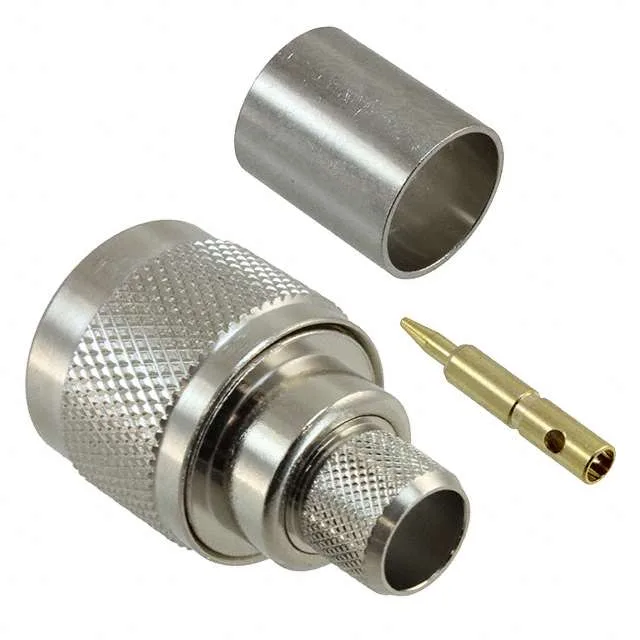

1-1337629-0 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Greenpar 1-1337629-0 N-Type Plug, 50 Ohm, 11 GHz

MPN1-1337629-0
Active

TE Connectivity Greenpar N-type plug, male pin, 50 Ohms, DC to 11 GHz, for RG-8A/213 cable, solder contact, crimp shield, threaded coupling, 500 mating cycles.

$5.0156Ref. price · indicative, final on quote
1-1337629-0 datasheet
StockIn Stock (33)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

1-1337629-0 Technical Specifications
ParameterValue
SeriesGreenpar
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeThreaded
Voltage rating1000 V
Frequency - max11 GHz
Cable groupRG-8A, 213
Operating temperature-65°C ~ 165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance50 Ohms
Body finishNickel
Mating cycles500
Insertion loss0.3dB
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

The 1-1337629-0: It terminates the cable with a solder centre contact and a crimped shield, then couples to a jack or bulkhead receptacle via the threaded fastening ring. This is the cable-end half of the N-type interface — you pair it with a jack (female) on the panel or instrument side.

Rated to 11 GHz with 0.3 dB insertion loss. The 50 Ohm impedance is fixed by the PTFE dielectric geometry; pair it with 50 Ohm cable (RG-8A or RG-213).

Termination and Field Assembly

The centre contact solders to the cable centre conductor; the shield crimps under the ferrule. The brass body with nickel finish resists corrosion in outdoor or marine environments. 500 mating cycles mean it holds up to repeated field connects without the gold-over-brass centre contact wearing through.

Frequently asked questions

What is the impedance of 1-1337629-0?

50 Ohms, the standard characteristic impedance for RF systems. Match it with 50 Ohm cable and 50 Ohm system impedance to avoid signal reflections.
