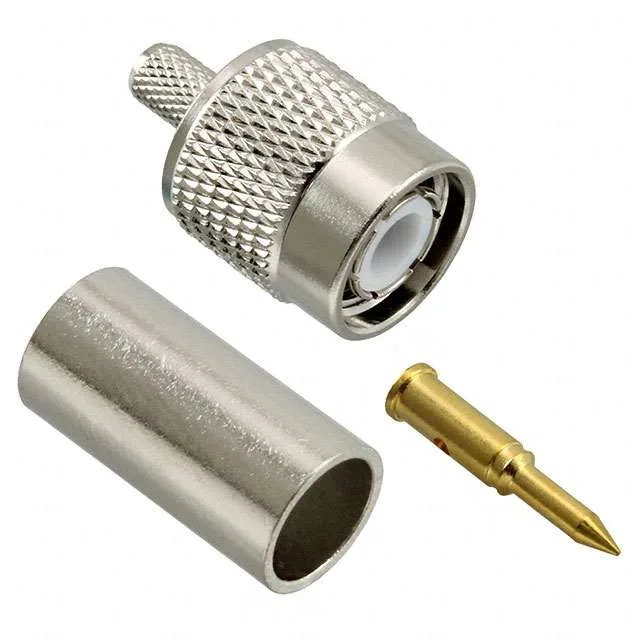

1-1337613-0 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 1-1337613-0 TNC Plug, 50 Ohm, 11 GHz

MPN1-1337613-0
Obsolete

TE Connectivity Greenpar TNC plug, male pin, 50 Ohm, 11 GHz, 500 V, free-hanging, threaded, solder contact, crimp shield, includes connector + contact + ferrule, bulk.

$2.4600Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

1-1337613-0 Technical Specifications
ParameterValue
SeriesGreenpar
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeThreaded
Voltage rating500 V
Frequency - max11 GHz
Cable groupRG-58C, 141A, Belden 9907
Operating temperature-65°C ~ 165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance50 Ohms
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

TNC Plug, 50 Ohm, 11 GHz — RF Performance and Fit

The TE Connectivity 1-1337613-0 is a TNC plug, male pin, from the Greenpar series. The 500 V voltage rating and gold-plated centre contact (brass) support repeated mating cycles — rated to 500 cycles — without signal degradation from contact wear.

No direct replacement order code is listed in the available records. Buyers should evaluate a parametric substitute from the same TNC, 50 Ohm class, matching the cable group and termination style.

Termination and Cable Compatibility

Contact termination is solder; shield termination is crimp. Compatible cables are RG-58C, 141A, and Belden 9907. The threaded fastening type provides vibration-resistant mating in field-installed cable assemblies.

Frequently asked questions

What is the replacement for 1-1337613-0?

For a drop-in fit, look for a TNC plug, 50 Ohm, with solder contact and crimp shield termination, compatible with RG-58C, 141A, or Belden 9907 cable. Contact our sourcing team for cross-reference assistance.

Is 1-1337613-0 compatible with RG-58C cable?

Yes, RG-58C is one of the listed cable groups for this plug, along with 141A and Belden 9907.

Where can I buy 1-1337613-0?

This obsolete part is sourced to order against your RFQ.
