N-Type Plug for RG-8A/213 — TE Greenpar 1-1337626-0

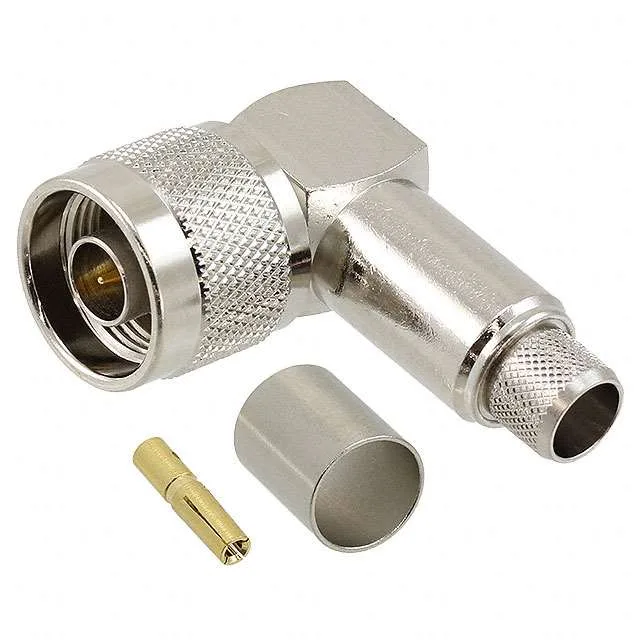

It is part of the Greenpar series, a long-standing line of RF connectors known for consistent 50 Ohm impedance and robust mechanical construction. This plug is rated to 11 GHz with an insertion loss of 0.3 dB, making it suitable for high-frequency signal paths in telecom, broadcast, and test equipment. The connector is supplied as a kit including the connector body, one gold-plated brass centre contact, and one ferrule — everything needed for a single termination.
RF Performance and Key Ratings
The 50 Ohm impedance and 11 GHz maximum frequency define the usable bandwidth — this plug will maintain a matched transmission line up into the X-band, beyond which the N-type interface itself becomes a mode-limited bottleneck. The 1000 V voltage rating is unusually high for an N-type connector, indicating the dielectric (PTFE) and contact spacing are sized for high-power RF or pulsed applications where voltage breakdown is a concern. With 500 mating cycles, the gold-plated centre contact and nickel-plated brass body are built for repeated connect-disconnect cycles in field-service or test-bench use, not just a one-time install.
This plug is specified for cable group RG-8A and RG-213 — both are common 50 Ohm coax types.
No official successor order code is provided in the manufacturer's lifecycle data. Buyers should evaluate alternative N-type plugs from the Greenpar series or other manufacturers for new designs, but no pin-compatible direct replacement is documented here.
