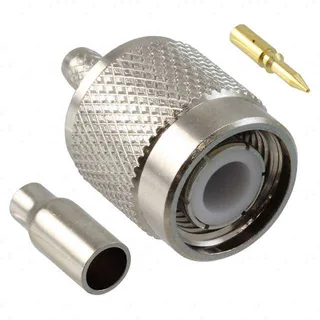

1-1337629-0
TE Connectivity AMP Connectors
3 pcs - 1 Connector, 1 Contact, 1 Ferrule50 OhmsGreenpar
Ref. price$5.0156
Lead time on requestGet quote ›
TE Connectivity AMP Connectors 1133 Series
9 variants · TE Connectivity AMP Connectors
About the TE Connectivity AMP Connectors 1133 Series
The TE Connectivity AMP Connectors 1133 Series series groups 9 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common body material of Brass, center contact plating of Gold and contact termination of Solder. Variants differ by body finish, cable group and center contact material, so you can match the exact body finish your application requires using the selection guide below. The range mixes active and legacy part numbers, so you can source both current TE Connectivity AMP Connectors 1133 Series variants and discontinued ones from a single page.
Select a variant by
- Body finish
- Gold · Nickel
- Cable group
- - · RG-8A, 213 · RG-9B, 214 · RG-58C, 141A · RG-58C, 141A, Belden 9907 · RG-174A, 188A, 316
- Center contact material
- Beryllium Copper · Brass
- Connector type
- Jack, Female Socket · Jack, Male Pin · Plug, Female Socket · Plug, Male Pin
- Frequency - max
- 10 GHz · 11 GHz
- Housing color
- Gold · Silver
- Impedance
- 50 Ohms · 50Ohm
- Includes
- - · 3 pcs - 1 Connector, 1 Contact, 1 Ferrule · 5 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Insulator, 1 Sleeve · 5 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Lockwasher, 1 Nut · 6 pcs - 1 Connector, 1 Clamp, 1 Contact, 1 Ferrule, 1 Insulator, 1 Washer
Shared specifications
- Body material
- Brass
- Center contact plating
- Gold
- Contact termination
- Solder
- Dielectric material
- Polytetrafluoroethylene (PTFE)
- Fastening type
- Threaded
- Features
- -
- Ingress protection
- -
- Mating cycles
- 500
- Number of ports
- 1
- Package
- Bulk
Variant comparison
| Parameter | 1-1337629-0 | 1-1337611-0 | 1-1337613-0 | 1-1337626-0 | 1-1337607-0 | 1-1337608-0 |
|---|---|---|---|---|---|---|
| Body finish | Nickel | Nickel | Nickel | Nickel | Gold | Gold |
| Cable group | RG-8A, 213 | RG-174A, 188A, 316 | RG-58C, 141A, Belden 9907 | RG-8A, 213 | RG-174A, 188A, 316 | RG-174A, 188A, 316 |
| Center contact material | Brass | Brass | Brass | Brass | Beryllium Copper | Beryllium Copper |
| Connector type | Plug, Male Pin | Plug, Male Pin | Plug, Male Pin | Plug, Male Pin | Plug, Female Socket | Plug, Female Socket |
| Frequency - max | 11 GHz | 11 GHz | 11 GHz | 11 GHz | 10 GHz | 10 GHz |
| Housing color | Silver | Silver | Silver | Silver | Gold | Gold |
| Impedance | 50 Ohms | 50Ohm | 50 Ohms | 50 Ohms | 50Ohm | 50 Ohms |
| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule | 5 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Insulator, 1 Sleeve | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule | 6 pcs - 1 Connector, 1 Clamp, 1 Contact, 1 Ferrule, 1 Insulator, 1 Washer | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule |
Request a quote on any TE Connectivity AMP Connectors 1133 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the TE Connectivity AMP Connectors 1133 Series variants differ?
- TE Connectivity AMP Connectors 1133 Series part numbers differ by body finish, cable group, center contact material and connector type. Use the selection guide above to pick by body finish.
- How many TE Connectivity AMP Connectors 1133 Series part numbers are listed?
- 9 TE Connectivity AMP Connectors 1133 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for TE Connectivity AMP Connectors 1133 Series?
- Request a quote (RFQ) for any TE Connectivity AMP Connectors 1133 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
