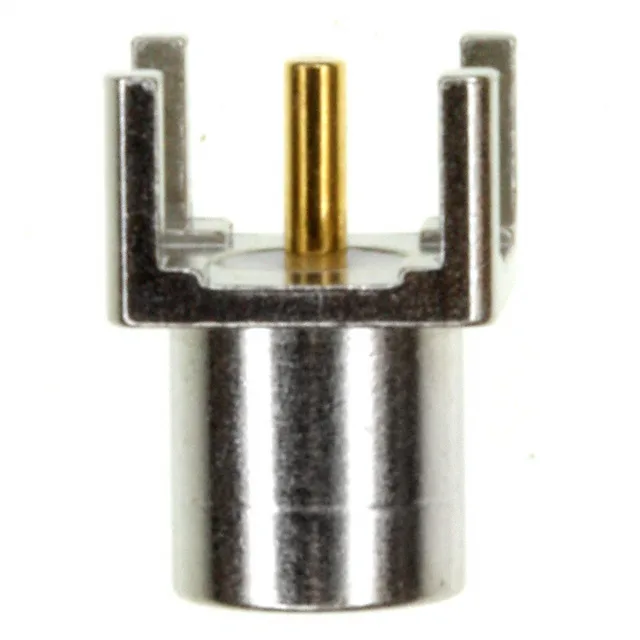

1060985-1 — TE Connectivity AMP Connectors product photo

TE Connectivity 1060985-1 MCX Receptacle, 50 Ohm, 6 GHz

MPN1060985-1
Active

TE Connectivity MCX receptacle, female socket, 50 Ohm, through-hole, snap-on fastening, 1 port, 6 GHz max, 0.1 dB insertion loss, 335 V, 500 mating cycles, gold-plated beryllium copper center contact, nickel brass body, PTFE dielectric, -65°C~165°C, Bulk.

$4.2900Ref. price · indicative, final on quote
StockIn Stock (28)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

1060985-1 Technical Specifications
ParameterValue
Mounting typeThrough Hole
Connector typeReceptacle, Female Socket
Fastening typeSnap-On
Voltage rating335 V
Frequency - max6 GHz
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
Impedance50Ohm
Body finishNickel
Mating cycles500
Insertion loss0.1dB
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

The TE Connectivity 1060985-1 is an MCX receptacle, female socket, designed for 50 Ohm RF signal paths. The 6 GHz frequency ceiling and 0.1 dB insertion loss keep the signal clean across the band, and the 500 mating cycles mean this jack can handle repeated connect-disconnect in test or field-service setups without degrading the contact.

The center contact is beryllium copper with gold plating — the beryllium copper gives spring retention after repeated mates, and the gold keeps oxidation off the RF signal path.

Frequently asked questions

What is the mating cycles for 1060985-1?

The 1060985-1 is rated for 500 mating cycles, which suits repeated connect-disconnect in test, field-service, or production environments.
