1-206062-3
TE Connectivity AMP Connectors

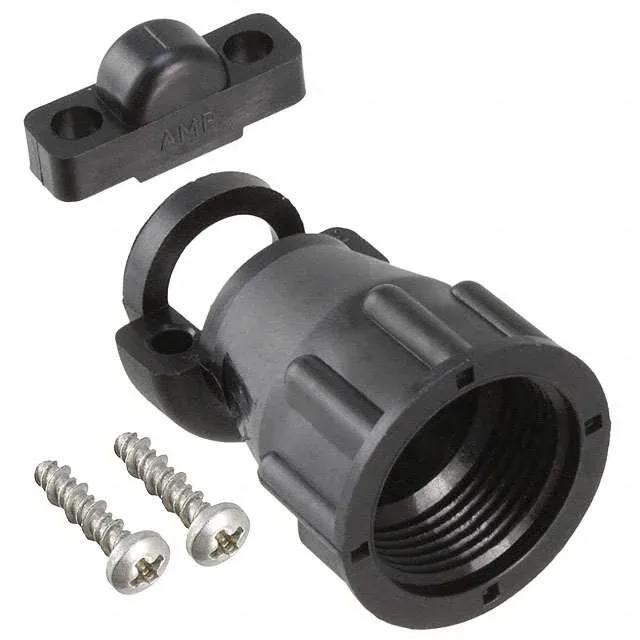

4 pcs - 2 pc Cable Clamp, 2 ScrewsBagClamp Screws
Ref. price$8.1900
Lead time on requestGet quote ›
TE Connectivity AMP Connectors 1206 Series
6 variants · TE Connectivity AMP Connectors
About the TE Connectivity AMP Connectors 1206 Series
The TE Connectivity AMP Connectors 1206 Series series groups 6 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common cable exit of 180°, color of Black and for use with (Related products) of CPC Connectors. Variants differ by cable opening, diameter - outside and features, so you can match the exact cable opening your application requires using the selection guide below. All listed TE Connectivity AMP Connectors 1206 Series part numbers are active and orderable.
Select a variant by
- Cable opening
- 0.329\" (8.36mm) · 0.703\" (17.86mm)
- Diameter - outside
- 0.825\" (20.96mm) · 1.131\" (28.73mm) · 1.600\" (40.64mm)
- Features
- Clamp Inserts, Clamp Screws · Clamp Screws
- Includes
- 4 pcs - 2 pc Cable Clamp, 2 Screws · 5 pcs - 3 pc Cable Clamp, 2 Screws · 7 pcs - 3 pc Cable Clamp, 2 Clamp Inserts, 2 Screws
- Package
- Bag · Box · Bulk
- Shell size - insert
- 11 · 17 · 23
- Shielding
- - · Unshielded
- Thread size
- 1 3/8-18 UNEF-2A · 5/8-24 UNEF · 15/16-20 UNEF
Shared specifications
- Cable exit
- 180°
- Color
- Black
- For use with (Related products)
- CPC Connectors
- Ingress protection
- -
- Material
- Thermoplastic
- Material flammability rating
- UL94 V-0
- Plating
- -
Variant comparison
| Parameter | 1-206062-3 | 1-206062-4 | 1-206062-6 | 1-206062-7 | 1-206138-0 | 1-206322-0 |
|---|---|---|---|---|---|---|
| Cable opening | 0.329\" (8.36mm) | 0.329\" (8.36mm) | 0.329\" (8.36mm) | 0.329\" (8.36mm) | 0.703\" (17.86mm) | 0.703\" (17.86mm) |
| Diameter - outside | 0.825\" (20.96mm) | 0.825\" (20.96mm) | 0.825\" (20.96mm) | 0.825\" (20.96mm) | 1.600\" (40.64mm) | 1.131\" (28.73mm) |
| Features | Clamp Screws | Clamp Screws | Clamp Screws | Clamp Screws | Clamp Inserts, Clamp Screws | Clamp Screws |
| Includes | 4 pcs - 2 pc Cable Clamp, 2 Screws | 4 pcs - 2 pc Cable Clamp, 2 Screws | 4 pcs - 2 pc Cable Clamp, 2 Screws | 4 pcs - 2 pc Cable Clamp, 2 Screws | 7 pcs - 3 pc Cable Clamp, 2 Clamp Inserts, 2 Screws | 5 pcs - 3 pc Cable Clamp, 2 Screws |
| Package | Bag | Bag | Bag | Bulk | Box | Bulk |
| Shell size - insert | 11 | 11 | 11 | 11 | 23 | 17 |
| Shielding | - | - | - | - | Unshielded | - |
| Thread size | 5/8-24 UNEF | 5/8-24 UNEF | 5/8-24 UNEF | 5/8-24 UNEF | 1 3/8-18 UNEF-2A | 15/16-20 UNEF |
Request a quote on any TE Connectivity AMP Connectors 1206 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the TE Connectivity AMP Connectors 1206 Series variants differ?
- TE Connectivity AMP Connectors 1206 Series part numbers differ by cable opening, diameter - outside, features and includes. Use the selection guide above to pick by cable opening.
- How many TE Connectivity AMP Connectors 1206 Series part numbers are listed?
- 6 TE Connectivity AMP Connectors 1206 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for TE Connectivity AMP Connectors 1206 Series?
- Request a quote (RFQ) for any TE Connectivity AMP Connectors 1206 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
