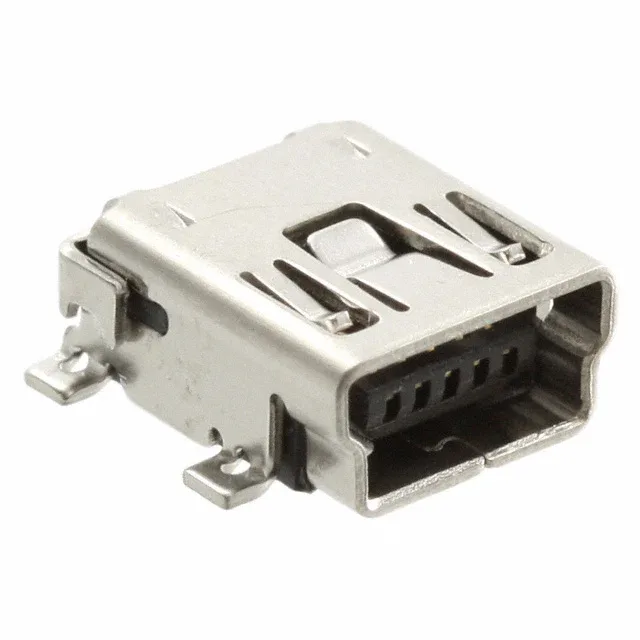

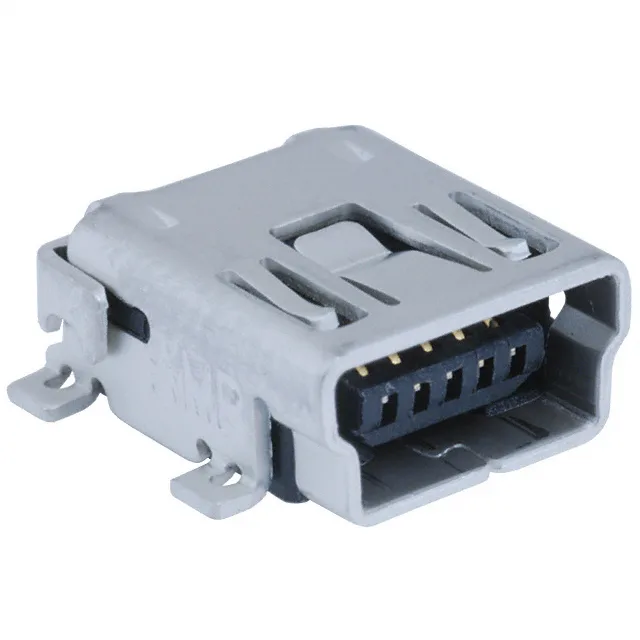

1734035-1
TE Connectivity AMP Connectors
ReceptacleSurface Mount, Right Angle-40°C ~ 85°C
Ref. price$1.3900
Lead time on requestGet quote
TE Connectivity AMP Connectors 1734 Usb Hdmi Assemblies Series
5 variants · TE Connectivity AMP Connectors
About the TE Connectivity AMP Connectors 1734 Usb Hdmi Assemblies Series
IC Source Direct is a China connector distributor, supplier and independent procurement agent for TE Connectivity AMP Connectors 1734 Usb Hdmi Assemblies Series components, matching housing, contact and mating cycles across the Shenzhen interconnect channel. The TE Connectivity AMP Connectors 1734 Usb Hdmi Assemblies Series series groups 5 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common contact finish of Gold, IP rating of - and material flammability rating of UL94 V-0. Variants differ by connector type, current rating and features, so you can match the exact connector type your application requires using the selection guide below. All listed TE Connectivity AMP Connectors 1734 Usb Hdmi Assemblies Series part numbers are active and orderable.
Select a variant by
- Connector type
- USB - mini B · USB-A (USB TYPE-A)
- Current rating
- 1A · 1.5A
- Features
- - · Board Guide, Solder Retention
- Gender
- Plug · Receptacle
- Insulation color
- Black · Natural
- Mating cycles
- 1500 · 5000
- Mounting
- Surface Mount, Right Angle · Surface Mount, Right Angle; Through Hole
- Operating temperature
- -40°C ~ 85°C · 0°C~50°C
Shared specifications
- Contact finish
- Gold
- IP rating
- -
- Material flammability rating
- UL94 V-0
- Mounting feature
- Horizontal
- Number of ports
- 1
- Shielding
- Shielded
- Specifications
- USB 2.0
- Termination
- Solder
Variant comparison
| Parameter | 1734028-1 | 1734035-1 | 1734035-2 | 1734035-3 | 1734035-4 |
|---|---|---|---|---|---|
| Connector type | USB-A (USB TYPE-A) | USB - mini B | USB - mini B | USB - mini B | USB - mini B |
| Current rating | 1.5A | 1A | 1A | 1A | 1A |
| Features | - | Board Guide, Solder Retention | Board Guide, Solder Retention | Board Guide, Solder Retention | Board Guide, Solder Retention |
| Gender | Plug | Receptacle | Receptacle | Receptacle | Receptacle |
| Insulation color | Natural | Black | Black | Black | Black |
| Mating cycles | 1500 | 5000 | 5000 | 5000 | 5000 |
| Mounting | Surface Mount, Right Angle; Through Hole | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Operating temperature | 0°C~50°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
Request a quote on any TE Connectivity AMP Connectors 1734 Usb Hdmi Assemblies Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
