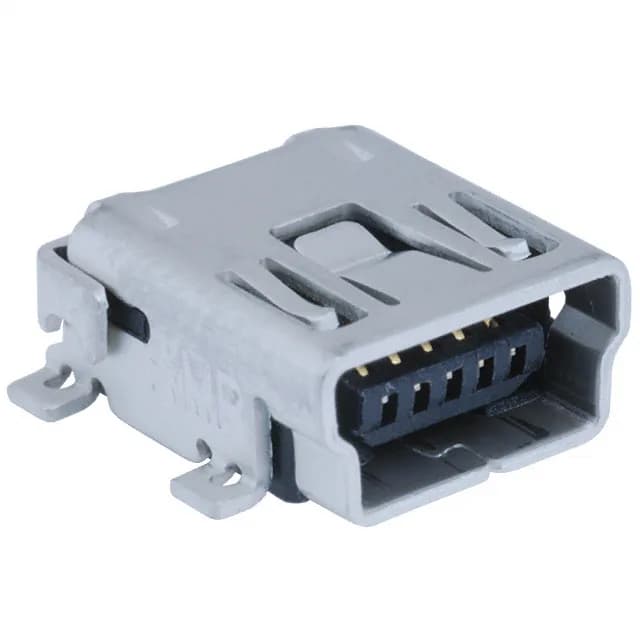

USB Mini B Receptacle for Board-Mount Applications
It carries 5 contacts in a shielded shell, terminated through surface-mount solder tails on a right-angle footprint. The steel (SUS304) shield bleeds EMI before it reaches the signal lines, which matters when the port lives near switching supplies or motor drives.
Horizontal orientation means the cable exits flat along the board — useful when the enclosure height is tight.
Signal and Power Ratings
Rated 1 A per contact at 30 VAC, which covers the USB 2.0 power delivery spec (5 V, 500 mA for standard downstream ports). The 5000-cycle rating means the gold-on-mating-surface contacts will hold up through years of daily reconnects without fretting corrosion — a common failure in tin-plated USB ports that see field use.
