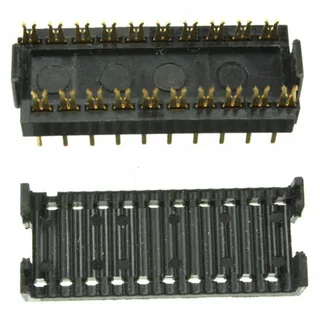

1-746610-4
TE Connectivity AMP Connectors
16BulkBlack
Ref. price$2.4600
Lead time on requestGet quote ›
TE Connectivity AMP Connectors 1746 Series
4 variants · TE Connectivity AMP Connectors
About the TE Connectivity AMP Connectors 1746 Series
The TE Connectivity AMP Connectors 1746 Series series groups 4 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common board-Side pitch of 0.100\" (2.54mm), cable pitch of 0.050\" (1.27mm) and cable termination of IDC. Variants differ by contact finish, contact finish thickness and package, so you can match the exact contact finish your application requires using the selection guide below. All listed TE Connectivity AMP Connectors 1746 Series part numbers are active and orderable.
Select a variant by
- Contact finish
- Gold · Tin
- Contact finish thickness
- 30.0µin (0.76µm) · 100.0µin (2.54µm)
- Package
- Bulk · Tray
- Positions
- 16 · 20 · 30
- Row spacing
- 0.100\" (2.54mm) · 0.300\" (7.62mm)
- Wire gauge
- 26-28 AWG, Stranded; 26-30 AWG Solid · 28 AWG, Stranded; 26-30 AWG, Solid
Shared specifications
- Board-Side pitch
- 0.100\" (2.54mm)
- Cable pitch
- 0.050\" (1.27mm)
- Cable termination
- IDC
- Color
- Black
- Connector type
- Ribbon Cable, DIP Header
- Features
- Feed Through
- Mounting type
- Through Hole
- Rows
- 2
Variant comparison
| Parameter | 1-746610-4 | 1-746610-5 | 1-746610-7 | 1-746611-0 |
|---|---|---|---|---|
| Contact finish | Tin | Tin | Tin | Gold |
| Contact finish thickness | 100.0µin (2.54µm) | 100.0µin (2.54µm) | 100.0µin (2.54µm) | 30.0µin (0.76µm) |
| Package | Bulk | Bulk | Bulk | Tray |
| Positions | 16 | 20 | 30 | 20 |
| Row spacing | 0.100\" (2.54mm) | 0.100\" (2.54mm) | 0.100\" (2.54mm) | 0.300\" (7.62mm) |
| Wire gauge | 26-28 AWG, Stranded; 26-30 AWG Solid | 26-28 AWG, Stranded; 26-30 AWG Solid | 26-28 AWG, Stranded; 26-30 AWG Solid | 28 AWG, Stranded; 26-30 AWG, Solid |
Request a quote on any TE Connectivity AMP Connectors 1746 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the TE Connectivity AMP Connectors 1746 Series variants differ?
- TE Connectivity AMP Connectors 1746 Series part numbers differ by contact finish, contact finish thickness, package and positions. Use the selection guide above to pick by contact finish.
- How many TE Connectivity AMP Connectors 1746 Series part numbers are listed?
- 4 TE Connectivity AMP Connectors 1746 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for TE Connectivity AMP Connectors 1746 Series?
- Request a quote (RFQ) for any TE Connectivity AMP Connectors 1746 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
