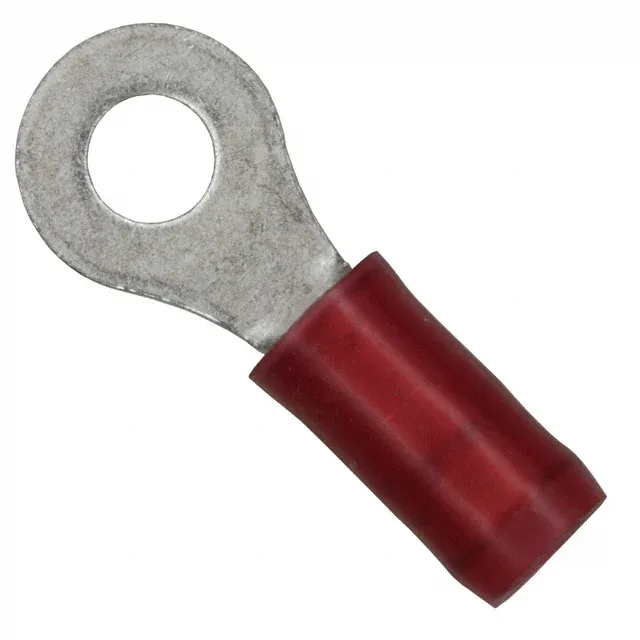

2-323008-1
TE Connectivity AMP Connectors
RedSerrated Termination0.031\" (0.79mm)
Ref. price$0.7400
Lead time on requestGet quote ›
TE Connectivity AMP Connectors 2323 Series
9 variants · TE Connectivity AMP Connectors
About the TE Connectivity AMP Connectors 2323 Series
The TE Connectivity AMP Connectors 2323 Series series groups 9 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common mounting type of Free Hanging (In-Line), terminal type of Circular and termination of Crimp. Variants differ by color, contact finish and contact material, so you can match the exact color your application requires using the selection guide below. All listed TE Connectivity AMP Connectors 2323 Series part numbers are active and orderable.
Select a variant by
- Color
- - · Orange · Red · Yellow · Yellow, Black Stripe · Yellow, Blue Stripe
- Contact finish
- - · Nickel · Tin
- Contact material
- Copper · Nickel
- Features
- Brazed Seam, High Temperature, Serrated Termination · Brazed Seam, Serrated Termination · Heavy Duty, Serrated Termination · Insulation Restriction, Serrated Termination · Serrated Termination
- Insulation
- Insulated · Non-Insulated
- Insulation diameter
- - · 0.031\" ~ 0.055\" (0.79mm ~ 1.40mm) · 0.050\" ~ 0.082\" (1.27mm ~ 2.08mm) · 0.080\" ~ 0.125\" (2.03mm ~ 3.18mm) · 0.150\" ~ 0.250\" (3.81mm ~ 6.35mm)
- Length - overall
- 0.525\" (13.34mm) · 0.621\" (15.77mm) · 0.691\" (17.55mm) · 0.739\" (18.77mm) · 0.740\" (18.80mm) · 0.765\" (19.43mm) · 0.844\" (21.44mm) · 1.188\" (30.18mm)
- Material - insulation
- - · Polyamide (PA), Nylon
Shared specifications
- Mounting type
- Free Hanging (In-Line)
- Terminal type
- Circular
- Termination
- Crimp
Variant comparison
| Parameter | 2-323008-1 | 2-323062-2 | 2-323096-2 | 2-323680-5 | 2-323682-1 | 2-323758-1 |
|---|---|---|---|---|---|---|
| Color | Red | - | - | Orange | Yellow, Black Stripe | Red |
| Contact finish | Tin | Nickel | Tin | - | Tin | Tin |
| Contact material | Copper | Copper | Copper | Nickel | Copper | Copper |
| Features | Serrated Termination | Brazed Seam, Serrated Termination | Brazed Seam, Serrated Termination | Brazed Seam, High Temperature, Serrated Termination | Heavy Duty, Serrated Termination | Serrated Termination |
| Insulation | Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Insulated | Insulated |
| Insulation diameter | 0.080\" ~ 0.125\" (2.03mm ~ 3.18mm) | - | - | - | 0.150\" ~ 0.250\" (3.81mm ~ 6.35mm) | 0.080\" ~ 0.125\" (2.03mm ~ 3.18mm) |
| Length - overall | 0.844\" (21.44mm) | 0.765\" (19.43mm) | 0.621\" (15.77mm) | 0.739\" (18.77mm) | 1.188\" (30.18mm) | 0.844\" (21.44mm) |
| Material - insulation | Polyamide (PA), Nylon | - | - | - | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
Request a quote on any TE Connectivity AMP Connectors 2323 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the TE Connectivity AMP Connectors 2323 Series variants differ?
- TE Connectivity AMP Connectors 2323 Series part numbers differ by color, contact finish, contact material and features. Use the selection guide above to pick by color.
- How many TE Connectivity AMP Connectors 2323 Series part numbers are listed?
- 9 TE Connectivity AMP Connectors 2323 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for TE Connectivity AMP Connectors 2323 Series?
- Request a quote (RFQ) for any TE Connectivity AMP Connectors 2323 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
