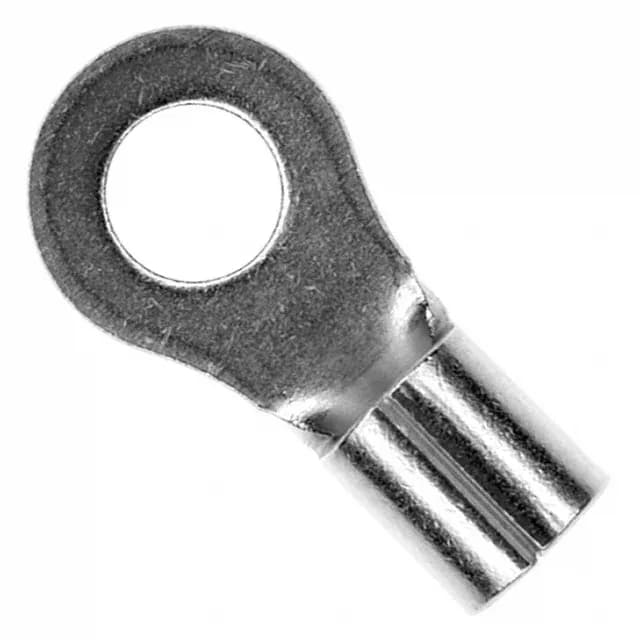

Nickel-plated ring terminal for 10-12 AWG
The 2-323062-2 is the #10-stud member of TE's Solistrand and Strato-Therm ring terminal line, accepting 10-12 AWG wire with a 0.039" (0.99mm) thick nickel-plated copper barrel. The brazed seam and serrated termination grip the conductor after crimp; the barrel is non-insulated and mounts free-hanging.
Stud size and barrel dimensions
Overall length is 0.765" (19.43mm) with an outer edge width of 0.375" (9.53mm). The #10 stud hole matches the 0.375" (9.53mm) outer width, and the 0.039" (0.99mm) barrel thickness is the thickest in the active Solistrand ring terminal family — the 18-22 AWG 133521-1 and the 14-16 AWG 1377172-7 both measure 0.031" (0.79mm).
