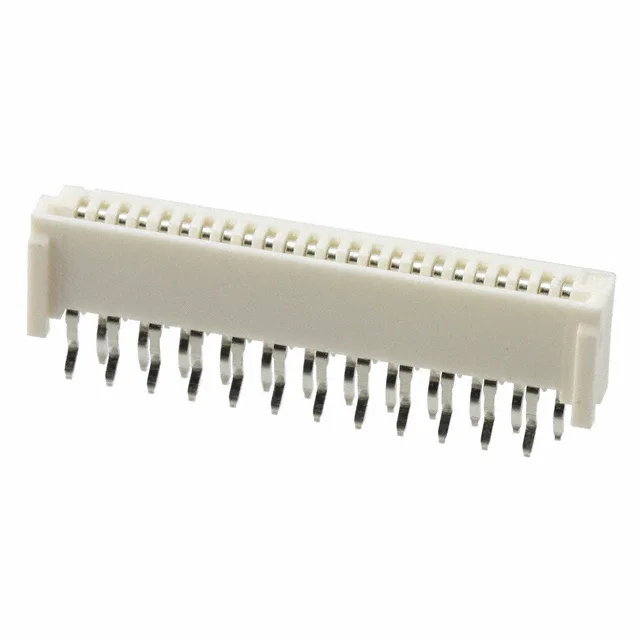

2-84533-4
TE Connectivity AMP Connectors
Through Hole, Right Angle-40°C~85°C24
Ref. price$0.5750
Lead time on requestGet quote
TE Connectivity AMP Connectors 2845 Ffc Fpc Series
3 variants · TE Connectivity AMP Connectors
About the TE Connectivity AMP Connectors 2845 Ffc Fpc Series
IC Source Direct is a China connector distributor, supplier and independent procurement agent for TE Connectivity AMP Connectors 2845 Ffc Fpc Series components, matching housing, contact and mating cycles across the Shenzhen interconnect channel. The TE Connectivity AMP Connectors 2845 Ffc Fpc Series series groups 3 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common actuator color of -, actuator material of - and cable end type of Tapered. Variants differ by connector (Contact type), height above board and housing color, so you can match the exact connector (Contact type) your application requires using the selection guide below. All listed TE Connectivity AMP Connectors 2845 Ffc Fpc Series part numbers are active and orderable.
Select a variant by
- Connector (Contact type)
- Contacts, Top · Contacts, Vertical - 1 Sided
- Height above board
- 0.189\" (4.80mm) · 0.307\" (7.80mm)
- Housing color
- - · White
- Mounting
- Through Hole · Through Hole, Right Angle
- Operating temperature
- -40°C ~ 85°C · -40°C~85°C
- Positions
- 20 · 24
Shared specifications
- Actuator color
- -
- Actuator material
- -
- Cable end type
- Tapered
- Contact finish
- Tin
- Contact finish thickness
- -
- Contact material
- Phosphor Bronze
- Current rating
- 1A
- Features
- -
- FFC, FCB thickness
- 0.30mm
- Flat flex type
- FFC
- Housing material
- Polybutylene Terephthalate (PBT), Glass Filled
- Locking feature
- -
Variant comparison
| Parameter | 2-84533-4 | 2-84534-0 | 2-84534-4 |
|---|---|---|---|
| Connector (Contact type) | Contacts, Top | Contacts, Vertical - 1 Sided | Contacts, Vertical - 1 Sided |
| Height above board | 0.189\" (4.80mm) | 0.307\" (7.80mm) | 0.307\" (7.80mm) |
| Housing color | - | White | White |
| Mounting | Through Hole, Right Angle | Through Hole | Through Hole |
| Operating temperature | -40°C~85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Positions | 24 | 20 | 24 |
Request a quote on any TE Connectivity AMP Connectors 2845 Ffc Fpc Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
