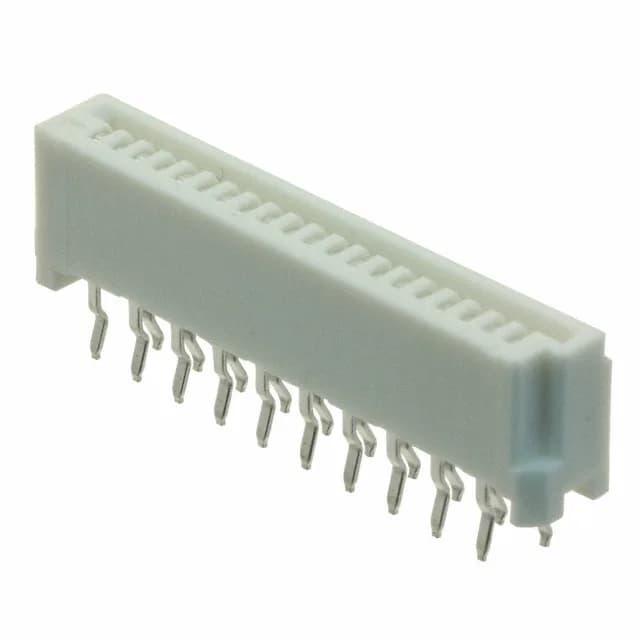

TE Connectivity AMP Connectors FFC connector, order code 2-84534-0, 20 positions, 0.049" (1.25mm) pitch, 1A, 50V, tin-plated phosphor bronze contacts, through-hole, kinked pin termination, vertical 1-sided contact type.
| Parameter | Value |
|---|---|
| Mounting | Through Hole |
| Cable end type | Tapered |
| Flat flex type | FFC |
| Connector (Contact type) | Contacts, Vertical - 1 Sided |
| Voltage rating | 50V |
| Current rating | 1A |
| Operating temperature | -40°C ~ 85°C |
| Housing color | White |
| Contact material | Phosphor Bronze |
| Housing material | Polybutylene Terephthalate (PBT), Glass Filled |
| Height above board | 0.307\" (7.80mm) |
| Pitch | 0.049\" (1.25mm) |
| Package | Tray |
| Termination | Kinked Pin |
| Contact finish | Tin |
| FFC, FCB thickness | 0.30mm |
| Positions | 20 |
The 2-84534-0 is the 20-position member of TE's 84534 series FFC connector family, accepting 0.30mm-thick flat flex cable with a tapered end. Tin-plated phosphor bronze contacts rated 1A per circuit at 50V mate with the FFC pads on one side only — the vertical orientation and kinked pin termination suit through-hole board mounting.
The pitch is 0.049" (1.25mm).
