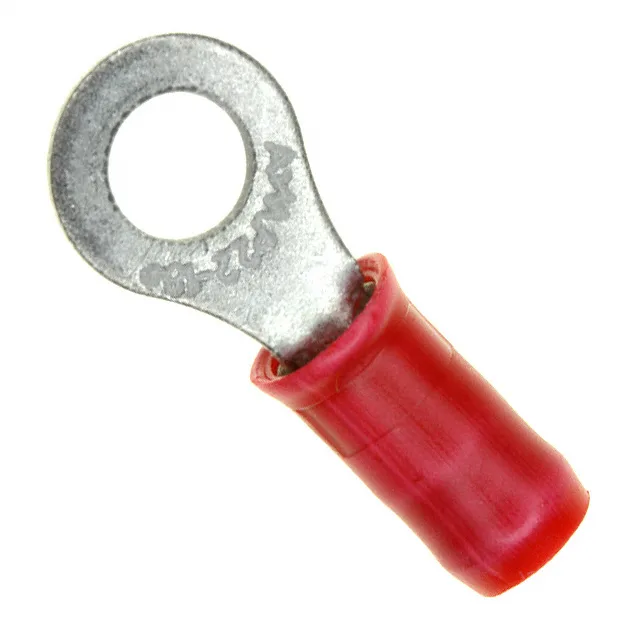

31887
TE Connectivity AMP Connectors
RedPIDGBulk
Ref. price$0.3400
Lead time on requestGet quote
TE Connectivity AMP Connectors 3188 Series
2 variants · TE Connectivity AMP Connectors
About the TE Connectivity AMP Connectors 3188 Series
The TE Connectivity AMP Connectors 3188 Series series groups 2 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common color of Red, contact finish of Tin and contact material of Copper. Variants differ by insulation diameter, length - overall and material - insulation, so you can match the exact insulation diameter your application requires using the selection guide below. All listed TE Connectivity AMP Connectors 3188 Series part numbers are active and orderable.
Select a variant by
- Insulation diameter
- 0.080\" ~ 0.125\" (2.03mm ~ 3.18mm) · 0.105\" ~ 0.140\" (2.67mm ~ 3.56mm)
- Length - overall
- 0.797\" (20.24mm) · 0.844\" (21.44mm)
- Material - insulation
- Polyamide (PA), Nylon · Vinyl
- Stud (Tab size)
- 8 Stud · 10 Stud
- Width - outer edges
- 0.281\" (7.14mm) · 0.312\" (7.92mm)
Shared specifications
- Color
- Red
- Contact finish
- Tin
- Contact material
- Copper
- Features
- Serrated Termination
- Insulation
- Insulated
- Mounting
- Free Hanging (In-Line)
- Package
- Bulk
- Terminal type
- Circular
- Termination
- Crimp
- Thickness
- 0.031\" (0.79mm)
- Wire gauge
- 16-22 AWG
Variant comparison
| Parameter | 31887 | 31888 |
|---|---|---|
| Insulation diameter | 0.105\" ~ 0.140\" (2.67mm ~ 3.56mm) | 0.080\" ~ 0.125\" (2.03mm ~ 3.18mm) |
| Length - overall | 0.797\" (20.24mm) | 0.844\" (21.44mm) |
| Material - insulation | Polyamide (PA), Nylon | Vinyl |
| Stud (Tab size) | 10 Stud | 8 Stud |
| Width - outer edges | 0.281\" (7.14mm) | 0.312\" (7.92mm) |
Request a quote on any TE Connectivity AMP Connectors 3188 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
