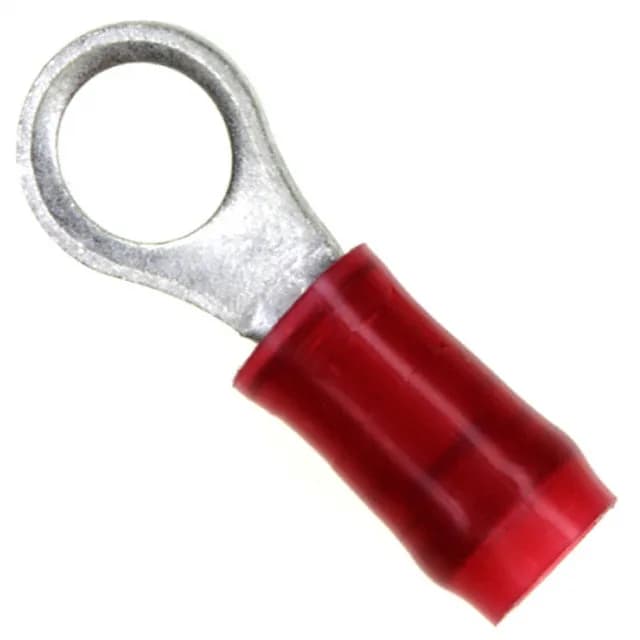

TE Connectivity AMP Connectors PIDG ring terminal, order code 31887, 16-22 AWG, #10 stud size, tin-plated copper contact, insulated red nylon, serrated crimp termination, free hanging in-line mount.
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 16-22 AWG |
| Color | Red |
| Contact material | Copper |
| Width - outer edges | 0.281\" (7.14mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Bulk |
| Features | Serrated Termination |
| Thickness | 0.031\" (0.79mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 10 Stud |
| Contact finish | Tin |
| Length - overall | 0.797\" (20.24mm) |
| Insulation diameter | 0.105\" ~ 0.140\" (2.67mm ~ 3.56mm) |
The 31887 is a PIDG-series ring terminal from TE Connectivity AMP Connectors, terminated with a crimp to 16-22 AWG wire and sized for a #10 stud. The tin-plated copper contact and red nylon insulation with serrated termination grip the conductor after crimp; the insulation diameter range is 0.105" to 0.140".
