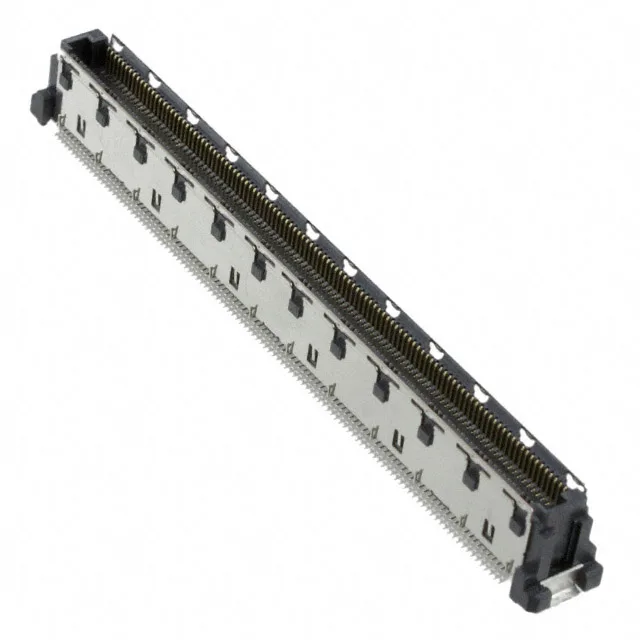

3-6318490-6
TE Connectivity AMP Connectors
0.020\" (0.50mm)Free Height (FH)Tray
Ref. price$13.4700
Lead time on requestGet quote
TE Connectivity AMP Connectors 3631 Series
2 variants · TE Connectivity AMP Connectors
About the TE Connectivity AMP Connectors 3631 Series
The TE Connectivity AMP Connectors 3631 Series series groups 2 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common contact finish of Gold, contact finish thickness of 8.00µin (0.203µm) and features of Board Guide, Ground Plate. Variants differ by connector type and height above board, so you can match the exact connector type your application requires using the selection guide below. All listed TE Connectivity AMP Connectors 3631 Series part numbers are active and orderable.
Select a variant by
- Connector type
- Plug, Outer Shroud Contacts · Receptacle, Center Strip Contacts
- Height above board
- 0.128\" (3.25mm) · 0.293\" (7.45mm)
Shared specifications
- Contact finish
- Gold
- Contact finish thickness
- 8.00µin (0.203µm)
- Features
- Board Guide, Ground Plate
- Mated stacking heights
- 5mm, 8mm
- Mounting
- Surface Mount
- Package
- Tray
- Pitch
- 0.020\" (0.50mm)
- Positions
- 220
- Rows
- 2
Variant comparison
| Parameter | 3-6318490-6 | 3-6318491-6 |
|---|---|---|
| Connector type | Receptacle, Center Strip Contacts | Plug, Outer Shroud Contacts |
| Height above board | 0.128\" (3.25mm) | 0.293\" (7.45mm) |
Request a quote on any TE Connectivity AMP Connectors 3631 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
