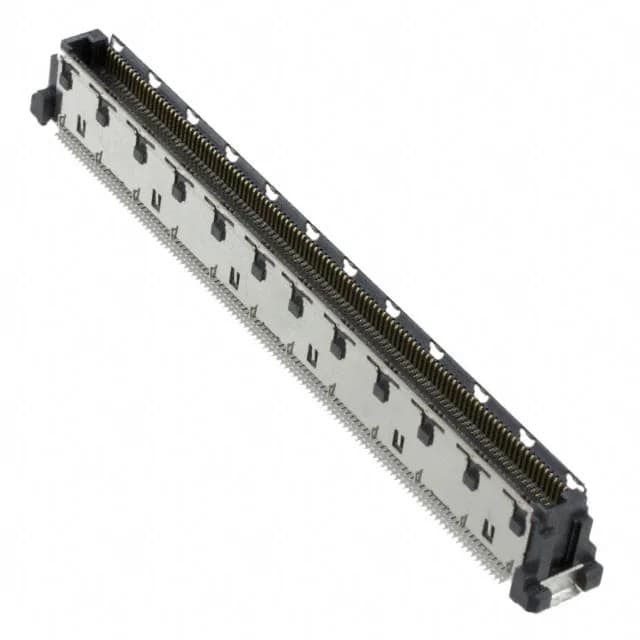

TE Connectivity Free Height (FH) series, Plug Outer Shroud Contacts, 220 positions, 2 rows, 0.020" (0.50mm) pitch, Surface Mount, Gold contact finish, 8.00µin (0.203µm) thickness, 0.293" (7.45mm) height above board, supports 5mm and 8mm mated stacking heights, Tray.
| Parameter | Value |
|---|---|
| Series | Free Height (FH) |
| Mounting | Surface Mount |
| Connector type | Plug, Outer Shroud Contacts |
| Height above board | 0.293\" (7.45mm) |
| Mated stacking heights | 5mm, 8mm |
| Pitch | 0.020\" (0.50mm) |
| Package | Tray |
| Features | Board Guide, Ground Plate |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 220 |
| Contact finish thickness | 8.00µin (0.203µm) |
The connector includes a board guide and a ground plate — the ground plate provides a low-inductance return path, which matters when routing high-speed differential pairs through the stack.
This plug supports mated stacking heights of 5mm and 8mm, meaning the same connector can be used in two different board-spacing designs without changing the BOM line.
Supplied in trays for pick-and-place handling.
This plug supports mated stacking heights of 5mm and 8mm.
Yes, it is ROHS3 compliant.
