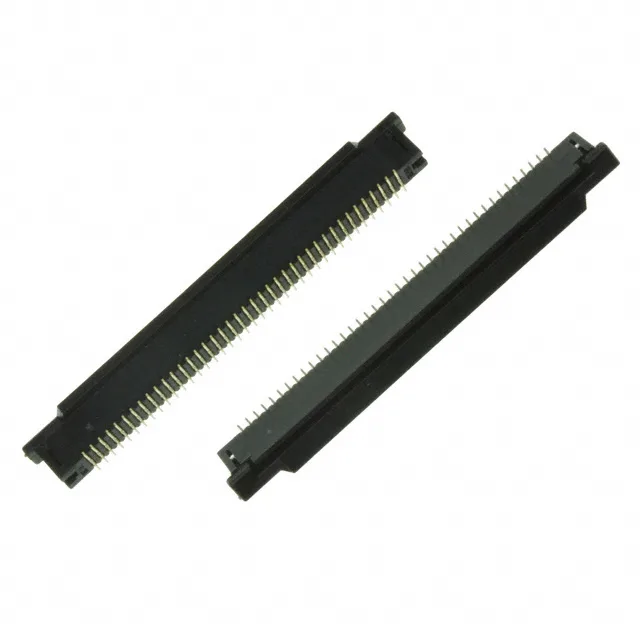

TE Connectivity AMP Connectors 4173 Series

15 variants · TE Connectivity AMP Connectors

About the TE Connectivity AMP Connectors 4173 Series

The TE Connectivity AMP Connectors 4173 Series series groups 15 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common cable end type of Tapered, contact finish of Gold and contact finish thickness of Flash. Variants differ by actuator color, actuator material and connector (Contact type), so you can match the exact actuator color your application requires using the selection guide below. The range mixes active and legacy part numbers, so you can source both current TE Connectivity AMP Connectors 4173 Series variants and discontinued ones from a single page.

Select a variant by

Actuator color: Black · Ivory
Actuator material: Polyamide (PA9T), Nylon 9T · Thermoplastic
Connector (Contact type): Contacts, Bottom · Contacts, Top · Contacts, Vertical - 1 Sided
Current rating: 0.5A · 1A
Features: Solder Retention, Zero Insertion Force (ZIF) · Zero Insertion Force (ZIF)
Height above board: 0.081\" (2.05mm) · 0.217\" (5.50mm)
Housing color: Black · Natural
Housing material: Liquid Crystal Polymer (LCP) · Polyamide (PA9T), Nylon 9T · Thermoplastic

Shared specifications

Cable end type: Tapered
Contact finish: Gold
Contact finish thickness: Flash
Contact material: Phosphor Bronze
FFC, FCB thickness: 0.30mm
Flat flex type: FPC
Locking feature: Slide Lock
Material flammability rating: UL94 V-0
Termination: Solder

Variant comparison

Parameter	4-1734248-0	4-1734592-1	4-1734592-2	4-1734592-3	4-1734592-5	4-1734592-6
Actuator color	Black	Ivory	Ivory	Ivory	Ivory	Ivory
Actuator material	Polyamide (PA9T), Nylon 9T	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic
Connector (Contact type)	Contacts, Vertical - 1 Sided	Contacts, Bottom	Contacts, Bottom	Contacts, Bottom	Contacts, Bottom	Contacts, Bottom
Current rating	1A	0.5A	0.5A	0.5A	0.5A	0.5A
Features	Zero Insertion Force (ZIF)	Solder Retention, Zero Insertion Force (ZIF)	Solder Retention, Zero Insertion Force (ZIF)	Solder Retention, Zero Insertion Force (ZIF)	Solder Retention, Zero Insertion Force (ZIF)	Solder Retention, Zero Insertion Force (ZIF)
Height above board	0.217\" (5.50mm)	0.081\" (2.05mm)	0.081\" (2.05mm)	0.081\" (2.05mm)	0.081\" (2.05mm)	0.081\" (2.05mm)
Housing color	Black	Natural	Natural	Natural	Natural	Natural
Housing material	Polyamide (PA9T), Nylon 9T	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)

Request a quote on any TE Connectivity AMP Connectors 4173 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.

Frequently asked questions

How do the TE Connectivity AMP Connectors 4173 Series variants differ?: TE Connectivity AMP Connectors 4173 Series part numbers differ by actuator color, actuator material, connector (Contact type) and current rating. Use the selection guide above to pick by actuator color.
How many TE Connectivity AMP Connectors 4173 Series part numbers are listed?: 15 TE Connectivity AMP Connectors 4173 Series part numbers are listed, each with specifications and a datasheet where available.
How do I get pricing and lead time for TE Connectivity AMP Connectors 4173 Series?: Request a quote (RFQ) for any TE Connectivity AMP Connectors 4173 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
