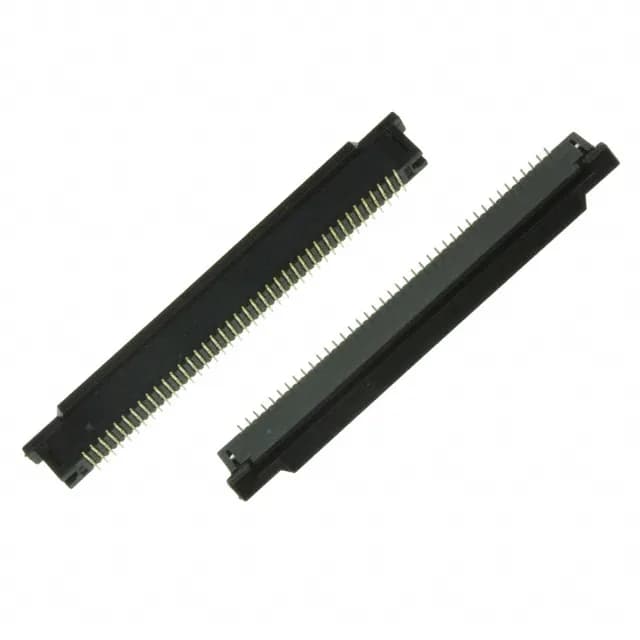

TE Connectivity AMP Connectors 4-1734248-0
MPN4-1734248-0
Obsolete
$3.0900Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Surface Mount |
| Cable end type | Tapered |
| Flat flex type | FPC |
| Connector (Contact type) | Contacts, Vertical - 1 Sided |
| Voltage rating | 125V |
| Current rating | 1A |
| Operating temperature | -20°C ~ 85°C |
| Housing color | Black |
| Actuator color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA9T), Nylon 9T |
| Actuator material | Polyamide (PA9T), Nylon 9T |
All specifications
| Parameter | Value |
|---|---|
| Height above board | 0.217\" (5.50mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.039\" (1.00mm) |
| Package | Tape & Reel (TR) |
| Features | Zero Insertion Force (ZIF) |
| Termination | Solder |
| Mating cycles | 20 |
| Contact finish | Gold |
| Locking feature | Slide Lock |
| FFC, FCB thickness | 0.30mm |
| Positions | 40 |
| Contact finish thickness | Flash |
