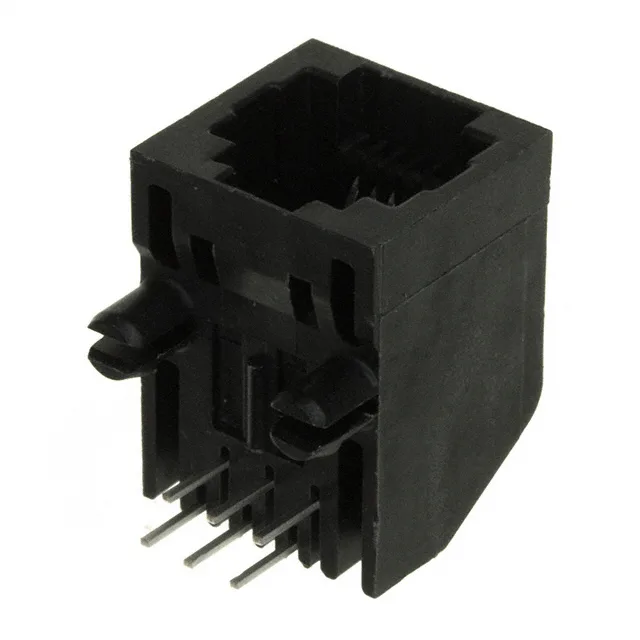

5569026-1
TE Connectivity AMP Connectors
Board Lock90° Angle (Right)Tray
Ref. price$8.3700
Lead time on requestGet quote ›
TE Connectivity AMP Connectors 5569 Series
10 variants · TE Connectivity AMP Connectors
About the TE Connectivity AMP Connectors 5569 Series
The TE Connectivity AMP Connectors 5569 Series series groups 10 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common connector type of Jack, contact finish of Gold and contact finish thickness of 50.0µin (1.27µm). Variants differ by features, housing material and LED color, so you can match the exact features your application requires using the selection guide below. All listed TE Connectivity AMP Connectors 5569 Series part numbers are active and orderable.
Select a variant by
- Features
- Board Guide · Board Lock · Board Lock, Keyed
- Housing material
- Polyamide (PA), Nylon · Polybutylene Terephthalate (PBT) · Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
- LED color
- Does Not Contain LED · Green - Green · Green - Yellow
- Number of ports
- 1 · 2 · 8 · 16
- Number of positions (Contacts)
- 6p2c (RJ11) · 6p6c (RJ11, RJ12, RJ14, RJ25) · 8p8c (RJ45, Ethernet)
- Orientation
- 90° Angle (Right) · Vertical
- Package
- Bulk · Tray
- Ratings
- Cat3 · Cat5
Shared specifications
- Connector type
- Jack
- Contact finish
- Gold
- Contact finish thickness
- 50.0µin (1.27µm)
- Contact material
- Phosphor Bronze
- Ingress protection
- -
- Mounting type
- Through Hole
- Operating temperature
- -40°C ~ 85°C
- Termination
- Solder
Variant comparison
| Parameter | 5569026-1 | 5569118-1 | 5569262-1 | 5569264-1 | 5569381-1 | 5569450-1 |
|---|---|---|---|---|---|---|
| Features | Board Lock | Board Lock, Keyed | Board Guide | Board Guide | Board Guide | Board Guide |
| Housing material | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| LED color | Does Not Contain LED | Does Not Contain LED | Does Not Contain LED | Does Not Contain LED | Does Not Contain LED | Does Not Contain LED |
| Number of ports | 1 | 1 | 8 | 16 | 2 | 2 |
| Number of positions (Contacts) | 6p6c (RJ11, RJ12, RJ14, RJ25) | 8p8c (RJ45, Ethernet) | 8p8c (RJ45, Ethernet) | 8p8c (RJ45, Ethernet) | 8p8c (RJ45, Ethernet) | 8p8c (RJ45, Ethernet) |
| Orientation | 90° Angle (Right) | 90° Angle (Right) | 90° Angle (Right) | 90° Angle (Right) | 90° Angle (Right) | 90° Angle (Right) |
| Package | Tray | Tray | Bulk | Tray | Tray | Tray |
| Ratings | Cat3 | Cat3 | Cat5 | Cat5 | Cat5 | Cat5 |
Request a quote on any TE Connectivity AMP Connectors 5569 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the TE Connectivity AMP Connectors 5569 Series variants differ?
- TE Connectivity AMP Connectors 5569 Series part numbers differ by features, housing material, LED color and number of ports. Use the selection guide above to pick by features.
- How many TE Connectivity AMP Connectors 5569 Series part numbers are listed?
- 10 TE Connectivity AMP Connectors 5569 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for TE Connectivity AMP Connectors 5569 Series?
- Request a quote (RFQ) for any TE Connectivity AMP Connectors 5569 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
