6P6C Right-Angle Jack for Board-Edge Termination

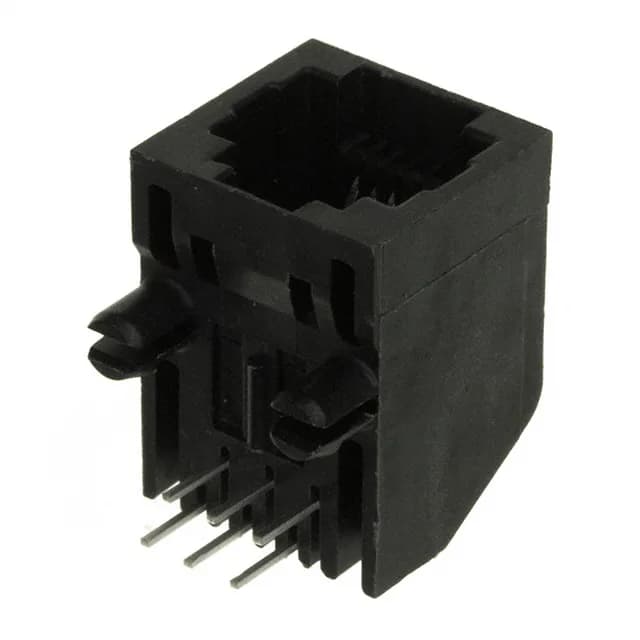

The TE Connectivity 5569026-1 is a 6-position 6-contact (6p6c) modular jack, wired for RJ11, RJ12, RJ14, or RJ25 pinouts. The unshielded nylon housing carries a board lock for solder-joint strain relief during plug insertion and removal.
Position Count and RJ45 Compatibility
At 6p6c, this jack accepts 6-conductor modular plugs (RJ11, RJ12, RJ14, RJ25) but not 8-conductor RJ45 plugs — an 8P8C plug is physically wider and will not seat in the 6-position cavity. If the BOM calls for an RJ45 Ethernet connection, this is not the jack; it is sized for 2- or 4-pair voice and low-speed data circuits where the extra two pairs of an 8P8C jack would be unused.
No official cross-reference or second-source equivalent is listed for this order code.
