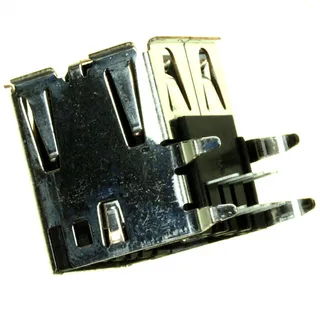

5787617-1
TE Connectivity AMP Connectors
8-55°C~85°CTray
Ref. price$5.0400
Lead time on requestGet quote ›
TE Connectivity AMP Connectors 5787 Series
13 variants · TE Connectivity AMP Connectors
About the TE Connectivity AMP Connectors 5787 Series
The TE Connectivity AMP Connectors 5787 Series series groups 13 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common contact finish of Gold or Gold-Palladium, current rating of 1A per Contact and features of Board Lock. Variants differ by connector type, insulation color and mounting feature, so you can match the exact connector type your application requires using the selection guide below. All listed TE Connectivity AMP Connectors 5787 Series part numbers are active and orderable.
Select a variant by
- Connector type
- USB-A (USB TYPE-A), Stacked · USB-B (USB TYPE-B)
- Insulation color
- Black · Natural
- Mounting feature
- Horizontal · Vertical
- Mounting type
- Through Hole · Through Hole, Right Angle
- Number of ports
- 1 · 2
- Operating temperature
- -55°C ~ 85°C · -55°C~85°C
- Package
- Bulk · Tray
- Positions
- 4 · 8
Shared specifications
- Contact finish
- Gold or Gold-Palladium
- Current rating
- 1A per Contact
- Features
- Board Lock
- Gender
- Receptacle
- Ingress protection
- -
- Material flammability rating
- UL94 V-0
- Mating cycles
- 1500
- Shielding
- -
- Specifications
- USB 2.0
- Termination
- Solder
- Voltage - rated
- 30VAC
Variant comparison
| Parameter | 5787617-1 | 5787617-2 | 5787617-3 | 5787617-4 | 5787617-5 | 5787617-8 |
|---|---|---|---|---|---|---|
| Connector type | USB-A (USB TYPE-A), Stacked | USB-A (USB TYPE-A), Stacked | USB-A (USB TYPE-A), Stacked | USB-A (USB TYPE-A), Stacked | USB-A (USB TYPE-A), Stacked | USB-A (USB TYPE-A), Stacked |
| Insulation color | Black | Black | Natural | Black | Black | Black |
| Mounting feature | Horizontal | Horizontal | Horizontal | Horizontal | Horizontal | Horizontal |
| Mounting type | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of ports | 1 | 1 | 1 | 1 | 1 | 1 |
| Operating temperature | -55°C~85°C | -55°C ~ 85°C | -55°C ~ 85°C | -55°C ~ 85°C | -55°C ~ 85°C | -55°C~85°C |
| Package | Tray | Tray | Tray | Bulk | Tray | Tray |
| Positions | 8 | 8 | 8 | 8 | 8 | 8 |
Request a quote on any TE Connectivity AMP Connectors 5787 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the TE Connectivity AMP Connectors 5787 Series variants differ?
- TE Connectivity AMP Connectors 5787 Series part numbers differ by connector type, insulation color, mounting feature and mounting type. Use the selection guide above to pick by connector type.
- How many TE Connectivity AMP Connectors 5787 Series part numbers are listed?
- 13 TE Connectivity AMP Connectors 5787 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for TE Connectivity AMP Connectors 5787 Series?
- Request a quote (RFQ) for any TE Connectivity AMP Connectors 5787 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
