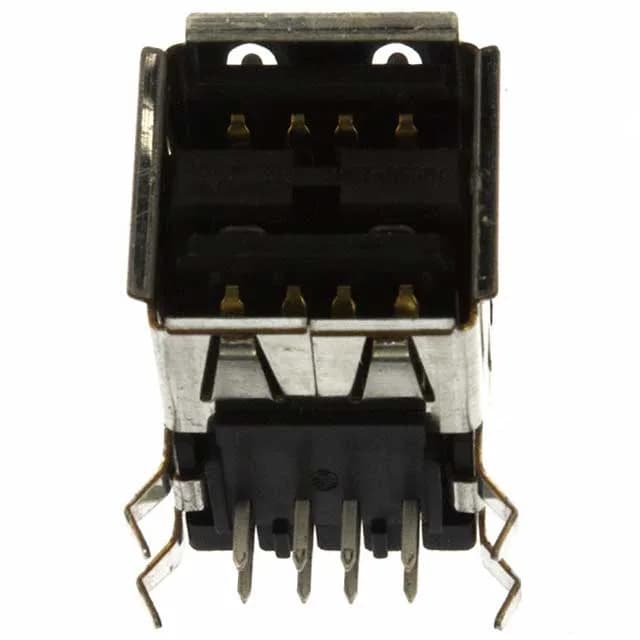

TE Connectivity 5787617-1, USB-A (USB TYPE-A) stacked receptacle, 8 contacts, 1 port, USB 2.0, right-angle through-hole, solder termination, board lock, 1A per contact, 30VAC.
| Parameter | Value |
|---|---|
| Mounting | Through Hole, Right Angle |
| Connector type | USB-A (USB TYPE-A), Stacked |
| Voltage - rated | 30VAC |
| Current rating | 1A per Contact |
| Positions | 8 |
| Mounting feature | Horizontal |
| Operating temperature | -55°C~85°C |
| Insulation color | Black |
| Shell (Shielding material) | Steel, Stainless |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Package | Tray |
| Features | Board Lock |
| Termination | Solder |
| Mating cycles | 1500 |
| Contact finish | Gold or Gold-Palladium |
| Specifications | USB 2.0 |
| Number of ports | 1 |
It mounts through-hole with a horizontal orientation, meaning the cable plugs in parallel to the board — a layout choice for enclosures where the USB ports sit on the edge of a vertical PCB.
The steel or stainless shell adds durability against bent or damaged plugs.
Yes, the 5787617-1 is RoHS compliant per the lifecycle record.
Yes, it includes a board lock for mechanical retention during soldering and against cable strain.
