6-1123723-7
TE Connectivity AMP Connectors
7-25°C~105°CBoard to Cable/Wire
Ref. price$0.9100
Lead time on requestGet quote

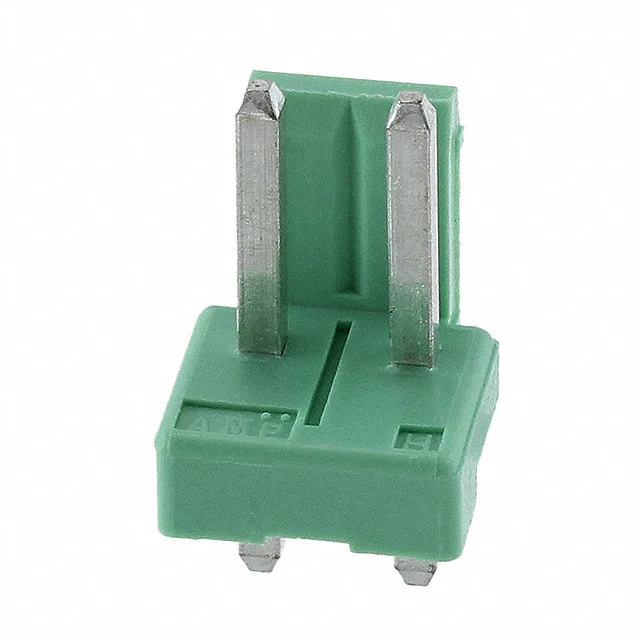

TE Connectivity AMP Connectors 6112 Pin Headers Series
2 variants · TE Connectivity AMP Connectors
About the TE Connectivity AMP Connectors 6112 Pin Headers Series
The TE Connectivity AMP Connectors 6112 Pin Headers Series series groups 2 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common applications of General Purpose, Industrial, Lighting, connector type of Header and contact finish - mating of Tin. Variants differ by operating temperature and positions, so you can match the exact operating temperature your application requires using the selection guide below. All listed TE Connectivity AMP Connectors 6112 Pin Headers Series part numbers are active and orderable.
Select a variant by
- Operating temperature
- -25°C ~ 105°C · -25°C~105°C
- Positions
- 2 · 7
Shared specifications
- Applications
- General Purpose, Industrial, Lighting
- Connector type
- Header
- Contact finish - mating
- Tin
- Contact finish - post
- Tin
- Contact length - mating
- 0.303\" (7.70mm)
- Contact length - post
- 0.146\" (3.70mm)
- Contact material
- Brass
- Contact shape
- Square
- Current rating
- 7.5A
- Fastening type
- Friction Lock
- Insulation color
- Green
- Insulation height
- 0.118\" (3.00mm)
Variant comparison
| Parameter | 6-1123723-2 | 6-1123723-7 |
|---|---|---|
| Operating temperature | -25°C ~ 105°C | -25°C~105°C |
| Positions | 2 | 7 |
Request a quote on any TE Connectivity AMP Connectors 6112 Pin Headers Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
