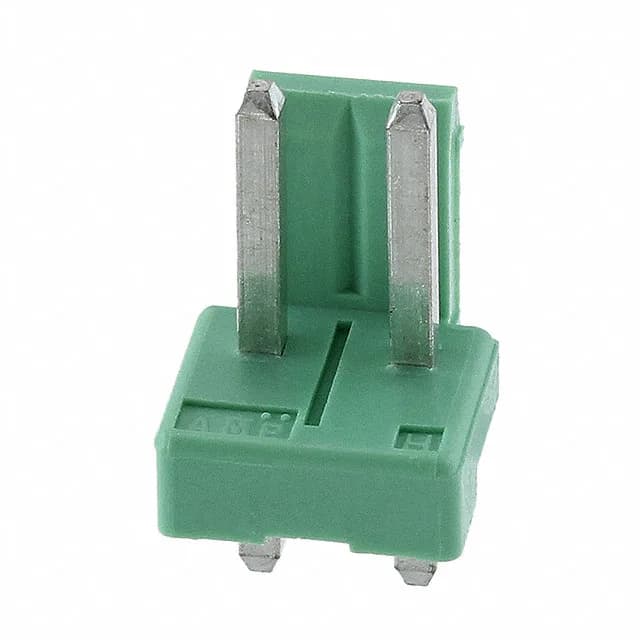

Economy Power 2-Position Header — Board-to-Wire Fit
The 3.96mm pitch sets the PCB footprint and the per-contact current ceiling — at 7.5A the temperature rise stays within the UL94 V-0 PBT housing limit.
Through-Hole Termination and Board Standoff
The through-hole solder termination uses a 0.146-inch (3.70mm) post length, giving a solid solder joint on standard 1.6mm PCBs. The single-wall shroud guides the mating connector during blind-mating and protects the pins from accidental shorting. The insulation height of 0.118 inches (3.00mm) keeps the header low-profile on the board.
