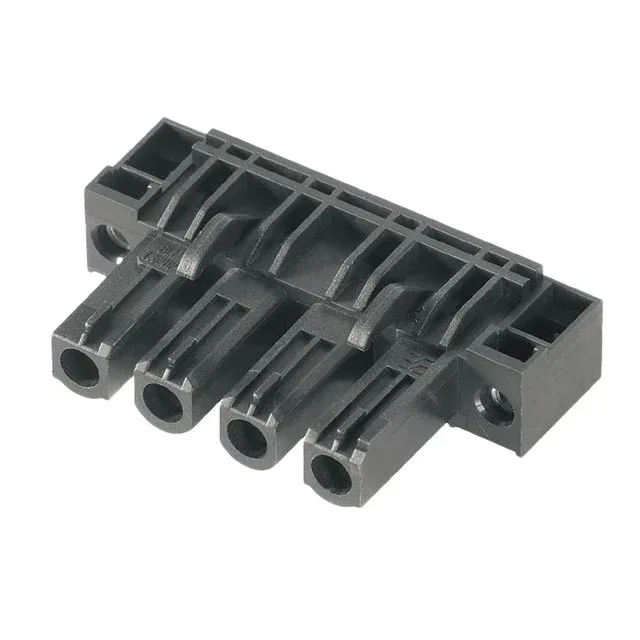

Weidmüller 1043250000
MPN1043250000
Active
TERM BLOCK HDR 4POS 90DEG 7.62MM
$4.78Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesOmnimate BL
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Female Sockets |
| Series | Omnimate BL |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Voltage - IEC | 630 V |
| Current - UL | 20 A |
| Current - IEC | 24A |
| IP rating | IP20 |
| Operating temperature | -50°C ~ 100°C |
| Color | Black |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA), Nylon, Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Insulation height | 0.409\" (10.40mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.300\" (7.62mm) |
| Package | Bulk |
| Features | Retention Latches |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | 90°, Right Angle |
| Contact tail length | 0.126\" (3.20mm) |
| Positions | 4 |
| Positions per level | 4 |
| Contact mating finish | Tin |
